Manhattan LCD HD089B&C Version 1 User Manual

Page 12

Section: Power Options:

HD089B model monitors may use any 12V regulated power source. All monitors ship with a

supplied 12V regulated AC adapter. The input connector is a standard 2.1x5.5mm barrel connector

the center pin being + positive outer shell is - negative. You may use any power source as long as

it is regulated. If the polarity is reversed it will void your warranty, if you overpower the monitor

with a higher voltage than 12.5 volts it will blow a fuse and void the warranty.

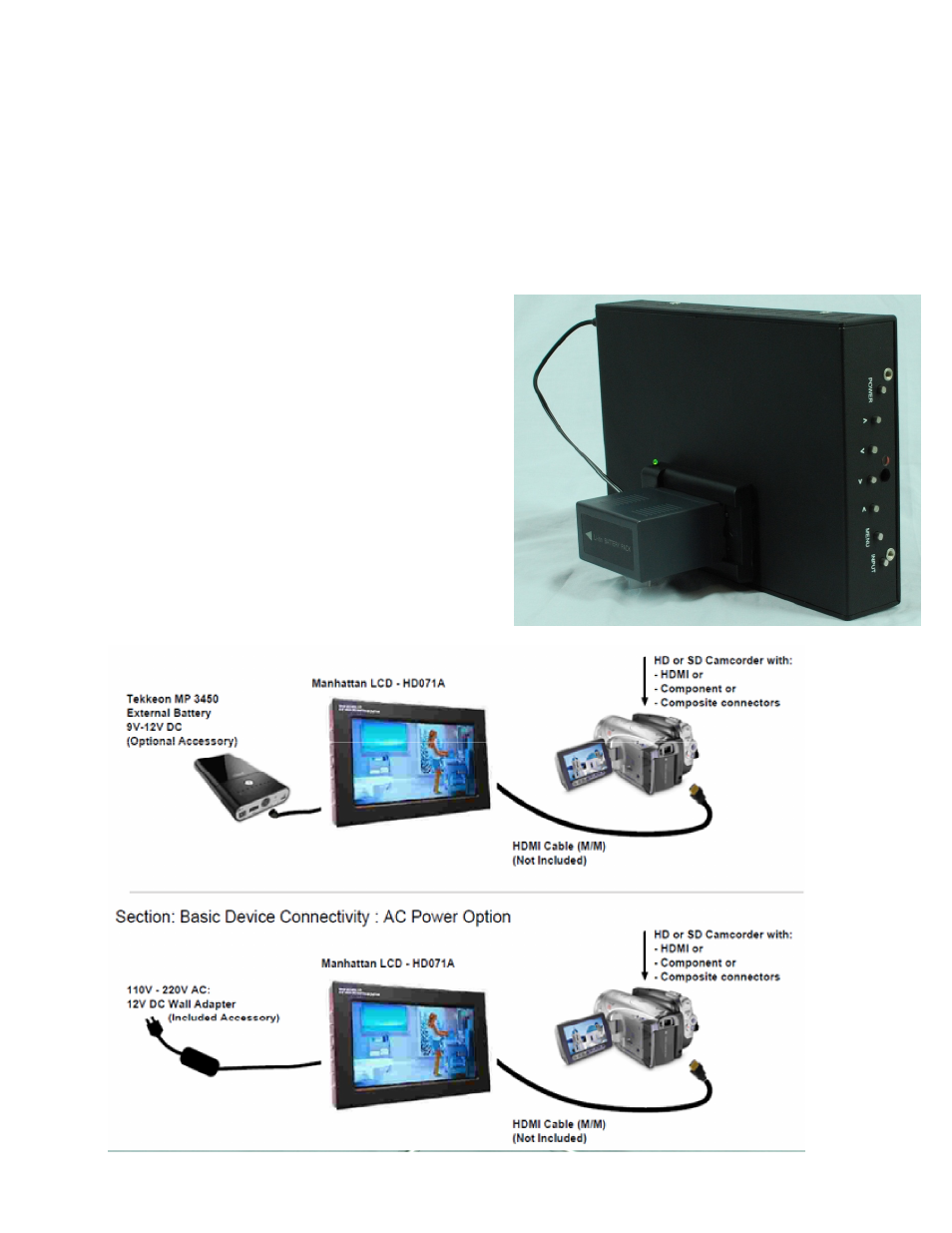

We currently offer optional battery packs with Velcro strips for mounting & battery plates for

Panasonic Cannon & Sony Batteries that include a

built in power regulator to ensure proper operation.

The Battery plates are mounted to the monitor at

the factory and are mounted in a sideways position

to allow the monitor to be flipped upside-down on

cameras with 35mm lens adapters. Note the green

status indicator it will turn on when the battery is

charged and flash when the battery is low. The

power wire connects to the 12V dc jack when the
