HDSLR Playback Mod

HDSLR Playback Mode:

This Mode will allow you to correctly view the image on a Canon DSLR camera such a 5D or T2i it

will automatically display the correct resolution when you play back a clip[ from the camera and will

display the image in full screen.

Red Camera

Red Camera Mode:

Mode:

This Mode will allow you to correctly view the image on a Red Camera such as a Red One. Red

cameras use a proprietary resolution coming from their HDMI output that normally only worked

with their brand of monitors. Our Monitor can automatically adjust to their proprietary and display

the image in full screen without cutting off the camera info.

A video detailing how to use the Image Size feature can be viewed online

www.YouTube.com/ManhattanLCD

Blue Gun Calibrating:

This feature will allow you to calibrate the monitor to your particular camera by only allowing the

monitor to display information from the blue channel of the standard RGB color scheme. There are

many ways to accomplish this task and the monitor is usually

very close to perfect right out of the box so usually only minor

adjustments are required. Please follow these steps:

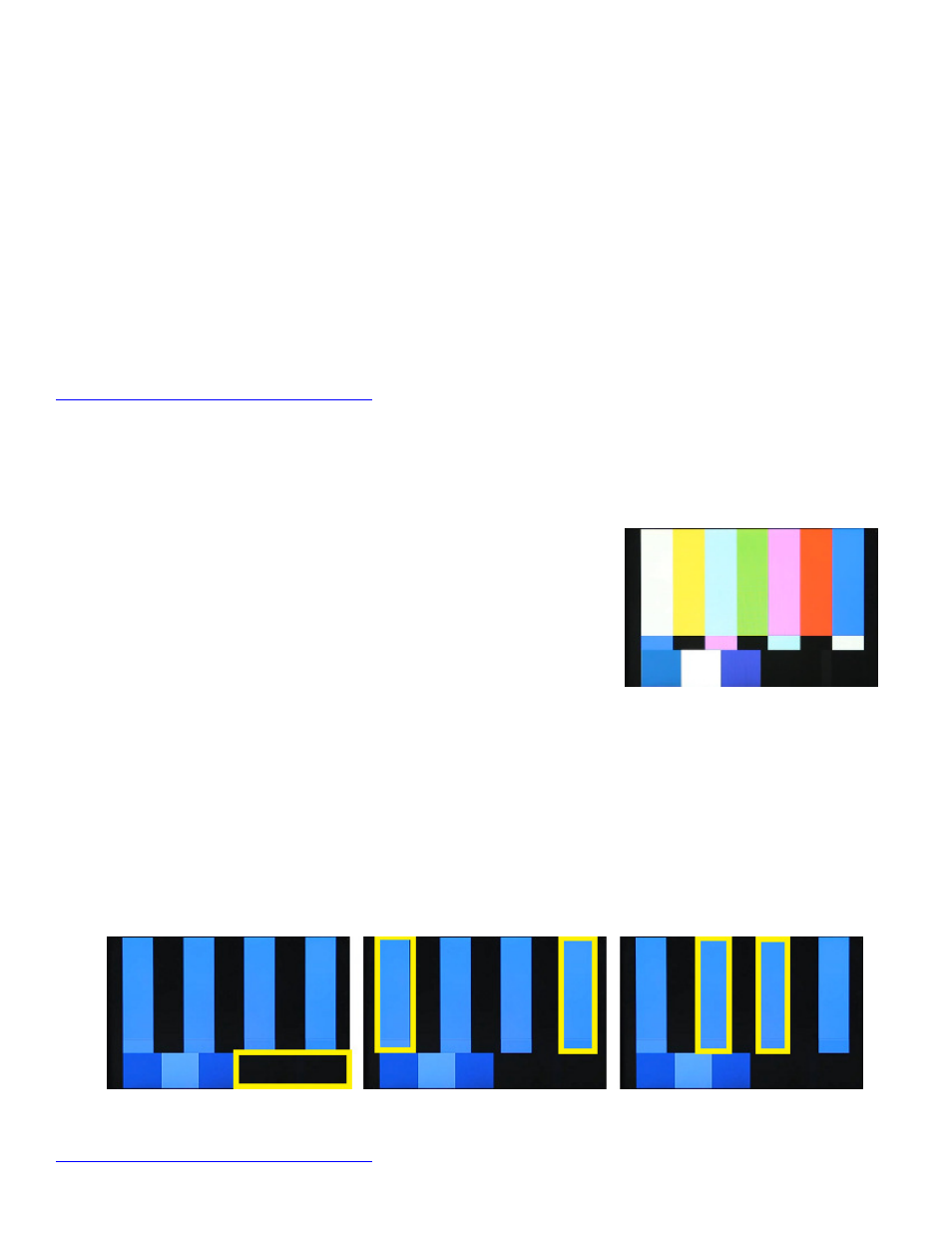

Send the Monitor SMTP Color Bars from the Camera or

signal generator. (Picture To Right)

Activate the Blue Gun feature of the monitor. Press

MENU scroll to the Advanced Tab and turn the Blue Gun

slider to the ON position hit MENU again to activate it. If you have a HD089BV2 or

HD089CV2 you can assign a hotkey to this feature under the setup tab.

Use the menu system or Quick Access Button on remote to set Brightness Up/ Down until

the plunge bar is displayed correctly. It will be correct when only 1 grey bar is visible. (Left

Picture Below)

Set the Color Up /Down until the far Left/ Right blue columns are the same color. (Middle

Picture Below)

Set the Tint/ Hue Up / Down until the middle Left/ Right blue columns are the same color.

(Right Picture Below)

A video detailing how to use the Blue Gun feature can be viewed online
