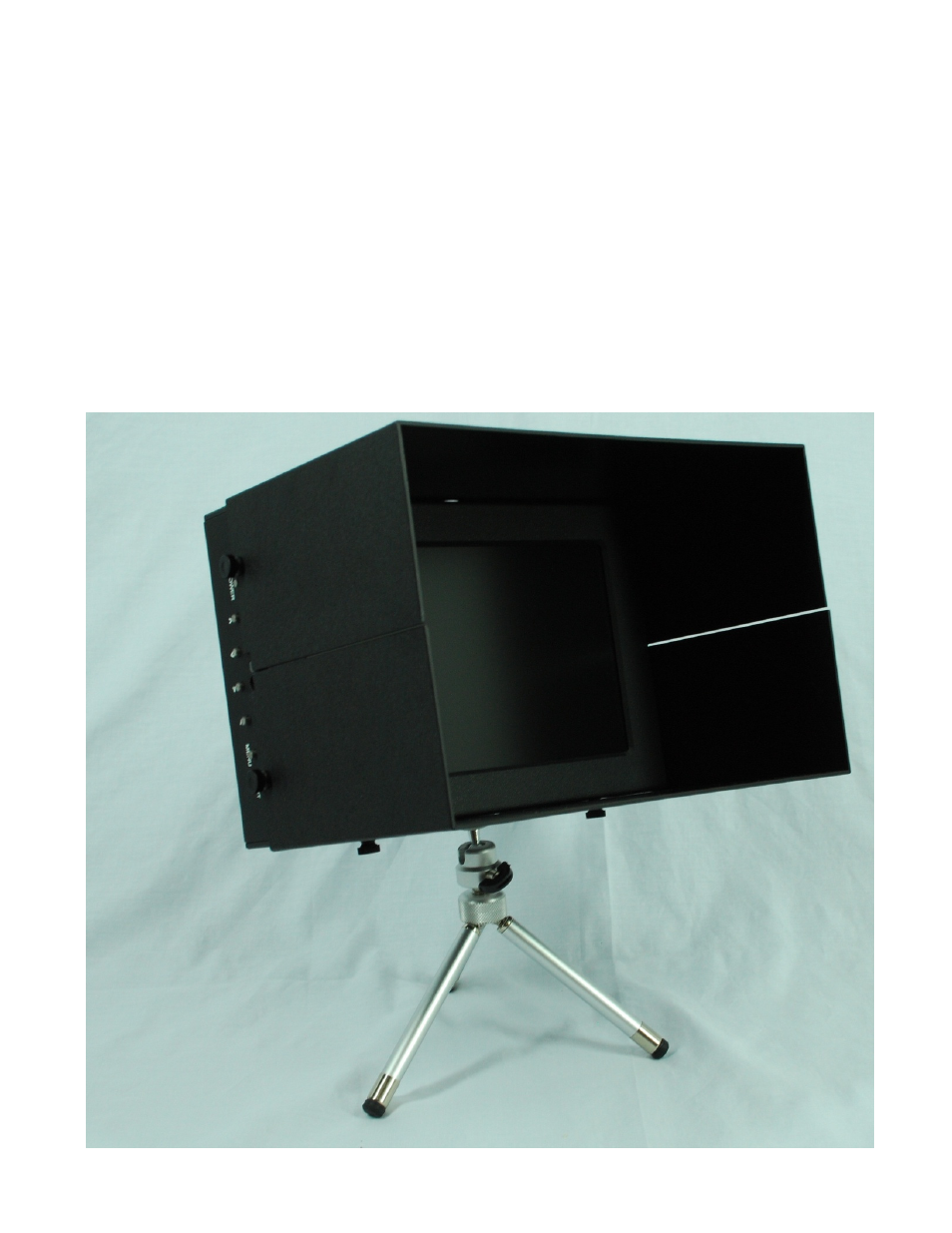

Section: Sun-Hood Installation
There are 8 treaded holes on the monitor 2 on each side the sun hood is a 2 piece design 1 piece
fits on the top the second on the bottom they are made to fit on either side. The sun hood mounts
to the monitor with supplied thumbscrews in 2 easy steps.
1 1 1 1. . . . Thread in the thumbscrews about half way
2. 2. 2. 2. Then slide the groves in the sun hood around the shaft of the thumbscrews and Snug the
thumbscrews.
