PowerReclineXRw ™ Motion Sofa
Assembly Instructions
PowerReclineXRw ™ Motion Sofa
Assembly Instructions
17 16
F IGURE 7 F IGURE 8
F IGURE 9 F IGURE 10
Back
Bracket
45 Degrees
from
Vertical
Locking
Lever

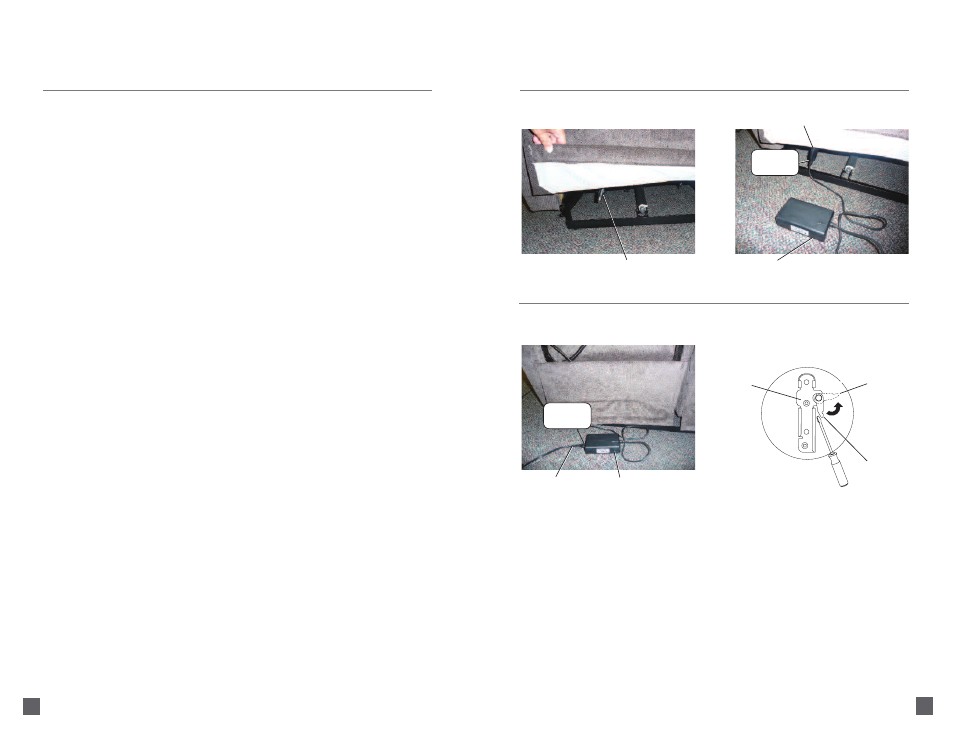

4. Locate the power supply connector, one behind each reclining seat (F IGURE 7). Align the power
transformer connector to the power supply connector, push together until fully seated and close
the locking cover to secure the connection (F
IGURE 8). Do this for each reclining seat.
5. Connect the 120 volt power cord to the power transformer (F IGURE 9). Do not plug in until
instructed in the Operating Instructions.
6. Proceed to the Battery Backup Assembly Instructions.
To Remove the Back:
1. Unplug the 120 volt power cord from the electrical outlet and disconnect the power transformer
connector from the power supply connector.
2. Taking care not to damage the cover, insert a screwdriver between the arm and back and engage
the locking lever on the back bracket (F IGURE s 10).
3. Push up on the locking lever until the lever is at 45 to 30 degrees from vertical (F IGURE 10).
4. Repeat steps 2 and 3 for the other side of the back, inserting the screwdriver between
the rear post and back.
5. The back is free to remove at this point. Lift up on the back to remove.
(Assembly Instructions Continued)
Power Supply Connector
120 Volt
Power Cord
Power Transformer
Make this
connection
Make this
connection
Power
Transformer
Power Supply Connector
