PowerReclineXR ® with Massage & Heat
Assembly Instructions
F IGURE 7 F IGURE 8
F IGURE 9 F IGURE 10

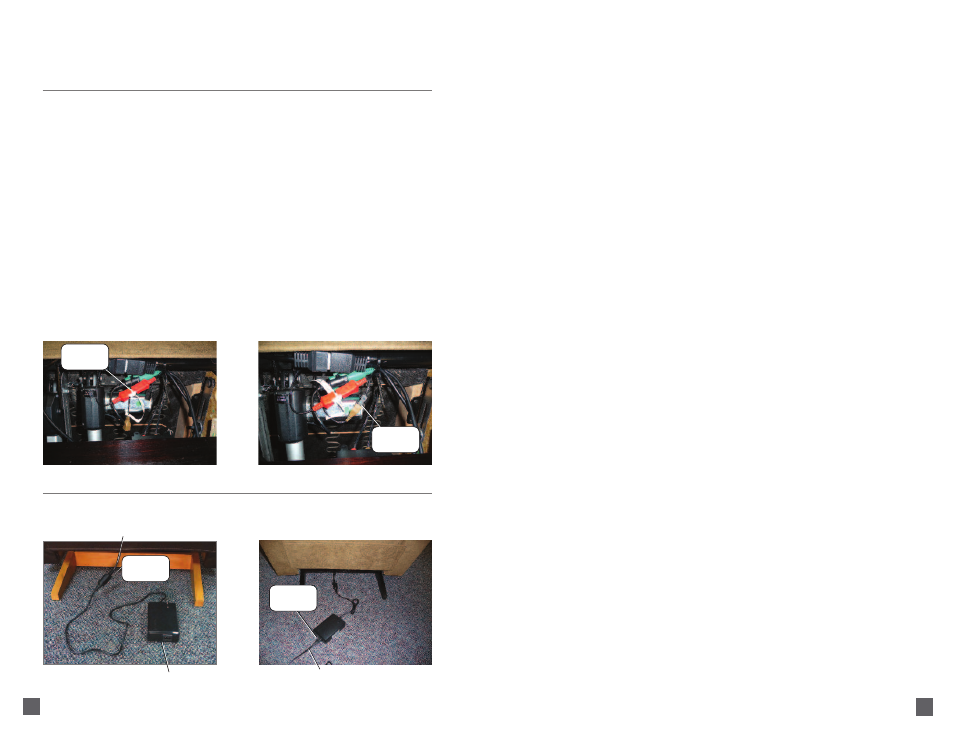

6. Align the red heating pad connectors and push the connectors together until locked (F IGURE 7).
7. Align the brown massage connector with the black massage connector and push the connectors
together until locked (F IGURE 8).
8. Gently rotate the chair back to the upright position so it is resting on its base. Do not allow the power
supply connector to be pinched between the frame and the floor.
9. Connect the power transformer connector into the power supply connector. If your connector has a
locking cover, close the locking cover to secure the connection (F IGURE 9). If your connector does not
have a locking cover, plug the power supply connector directly into the power supply until
it is fully seated.
10. Connect the 120 volt power cord to the power transformer (F IGURE 10). Do not plug in until instructed
in the Operating Instructions.
11. Proceed to the Battery Backup Assembly Instructions.
12. To remove the back, unplug the 120 volt power cord from the electrical outlet, and disconnect the
power transformer connector from the power supply connector. Reverse the Assembly Instructions steps.
Make this
connection
Make this
connection
Make this
connection
120 Volt
Power Cord
11 10
Power Transformer*
*Power transformers/connections will vary by style.
(Page intentionally left blank.)
Make this
connection
Power Supply Connector
