PowerReclineXRw
™
Motion Sofa
Assembly Instructions
PowerReclineXRw
™
Motion Sofa
Assembly Instructions
NOTICE:
Do not plug in until instructed.

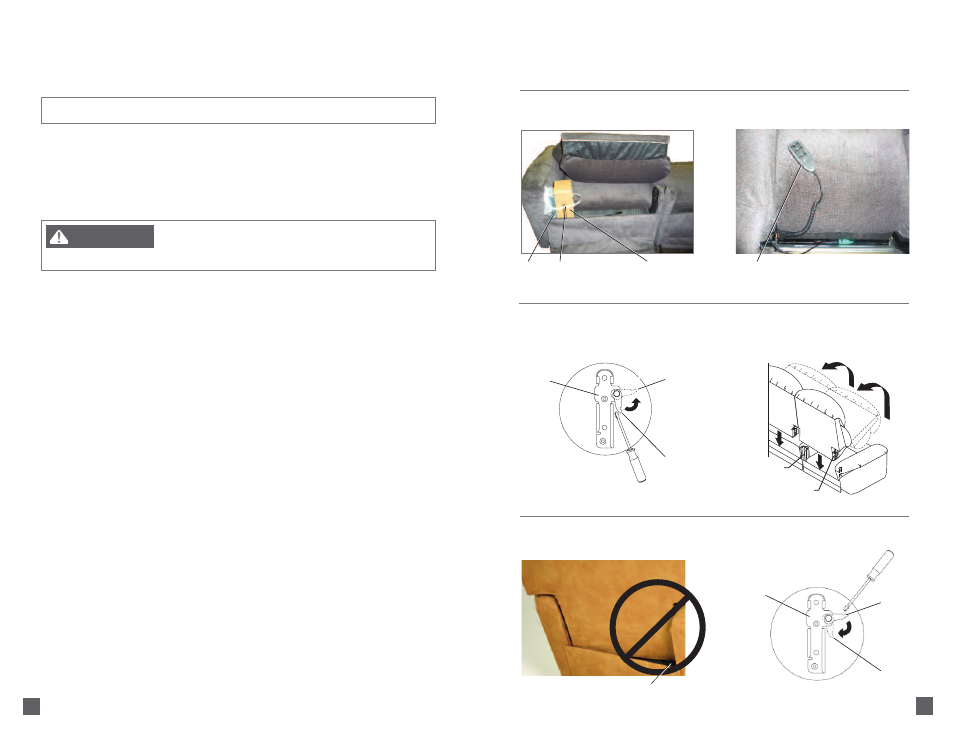

1. Starting with all packaging removed from the unit, locate the boxed power transformer, packaged
120 volt power cord and bubble wrapped optional hand wand (if applicable) secured to the body
bracket of the unit (F
IGURE
1); there is one each per reclining seat.
2. Carefully cut the plastic tie(s) securing the parts. Unpack the power transformers and 120 volt
power cords and set aside. For units with optional hand wands, remove the bubble wrap and
place the hand wand on the seat (F
IGURE
2).
Hand
Wand
F
IGURE
1
F
IGURE
2
F
IGURE
3
F
IGURE
5
F
IGURE
6
Plastic
Tie
Power Transformer &
120 Volt Power Cord
Hand
Wand
15
14
– To reduce the risk of injury:
• Do not operate the unit until the back is installed and locked.
WARNING
3. Install the back.
•
Lay the backs face down on the seats. Starting with one back, turn the locking levers, located
on the brackets attached to the back (one on each side), 45 to 30 degrees from vertical (F
IGURE
3).
•
Hold the back at a slight angle to the seat and align the brackets on the back with the brackets
on the body (F
IGURE
4).
•
Rotate the back upright and lower the back onto the body (F
IGURE
4), making sure the back and
body brackets are completely engaged.
-
To make sure the back is properly installed with both sets of back and body brackets
engaged, stand behind the unit and twist the back from side to side. If one or both sides
move out of position the brackets are not engaged (F
IGURE
5). Remove the back and
repeat the steps above.
-
If you are unable to install the back properly, contact your La-Z-Boy
®
dealer for assistance.
•
Lock both back brackets by using a screwdriver to push the locking levers down (F
IGURE
6).
•
Repeat this step for each back.
F
IGURE
4
Back
Bracket
Locking
Lever
at 45
Degrees
from
Vertical
Locked
Position
Back and body brackets on this side are not
engaged. Remove the back and reinstall.
(Assembly Instructions Continued)
Back
Bracket
45 Degrees
from
Vertical
Locking
Lever
Back Bracket
Body Bracket
