7 antenna cable routing – Kontron M2M Smart Services Developer Kit User Manual User Manual
Page 30
30

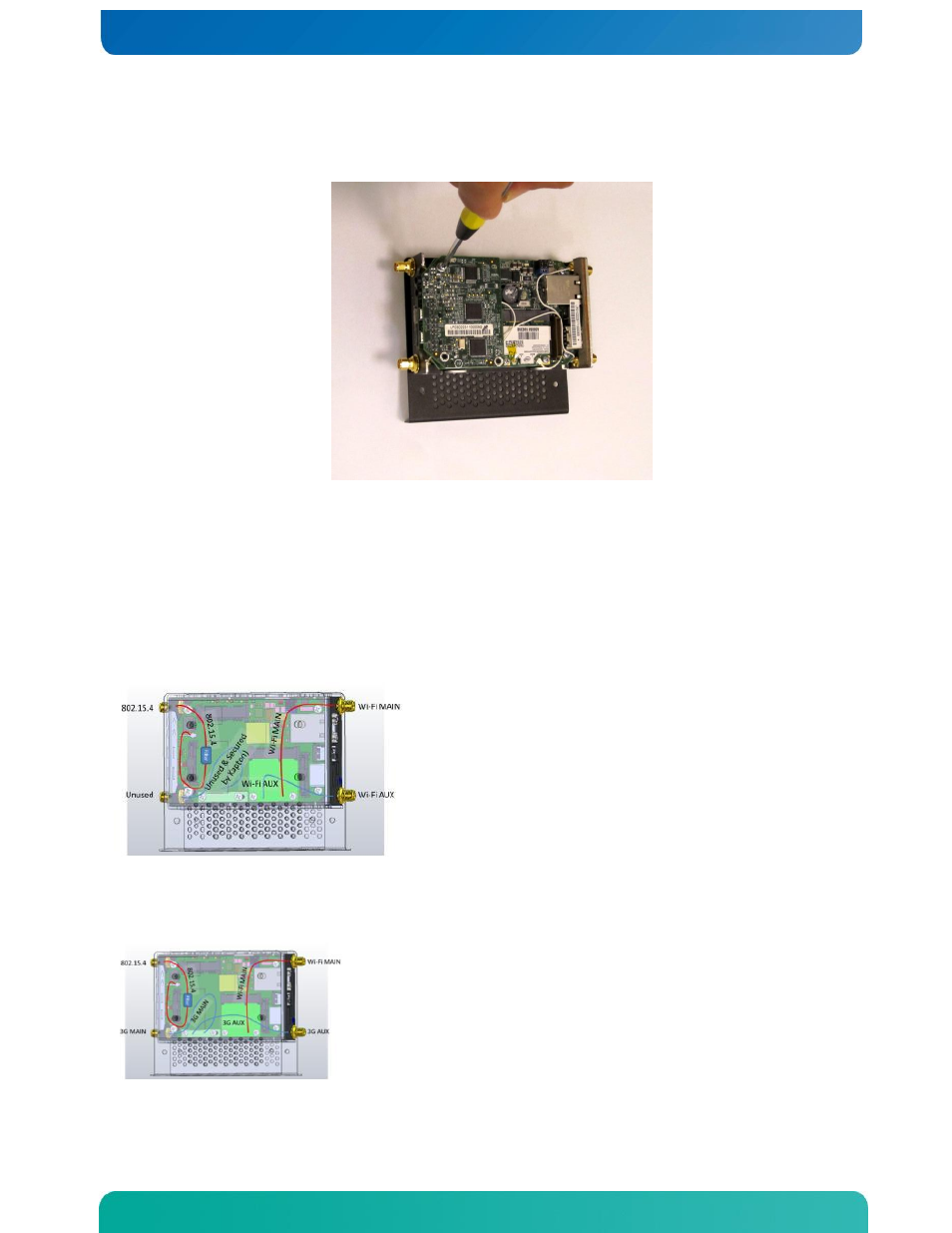

Figure 22. Remove AV card screw
5.7
Antenna Cable Routing
At all times care must be taken not to alter the antenna cable routing. Altering the routing voids certifications. The
following illustrations show the proper routing of antenna cables.
Figure 23 shows antenna cable routing that that should be followed when the 3G module is installed.
Figure 23. Antenna Cable Routing when there is no 3G module installed
Figure 24 shows antenna cable routing that should be followed when the 3G modem is installed.
Figure 24. Antenna Cable Routing supporting 3G Usage
