13. Standard Interfaces – Pin Assignments KISS 1U_SBC_762 – User's Guide (Version 1.00)

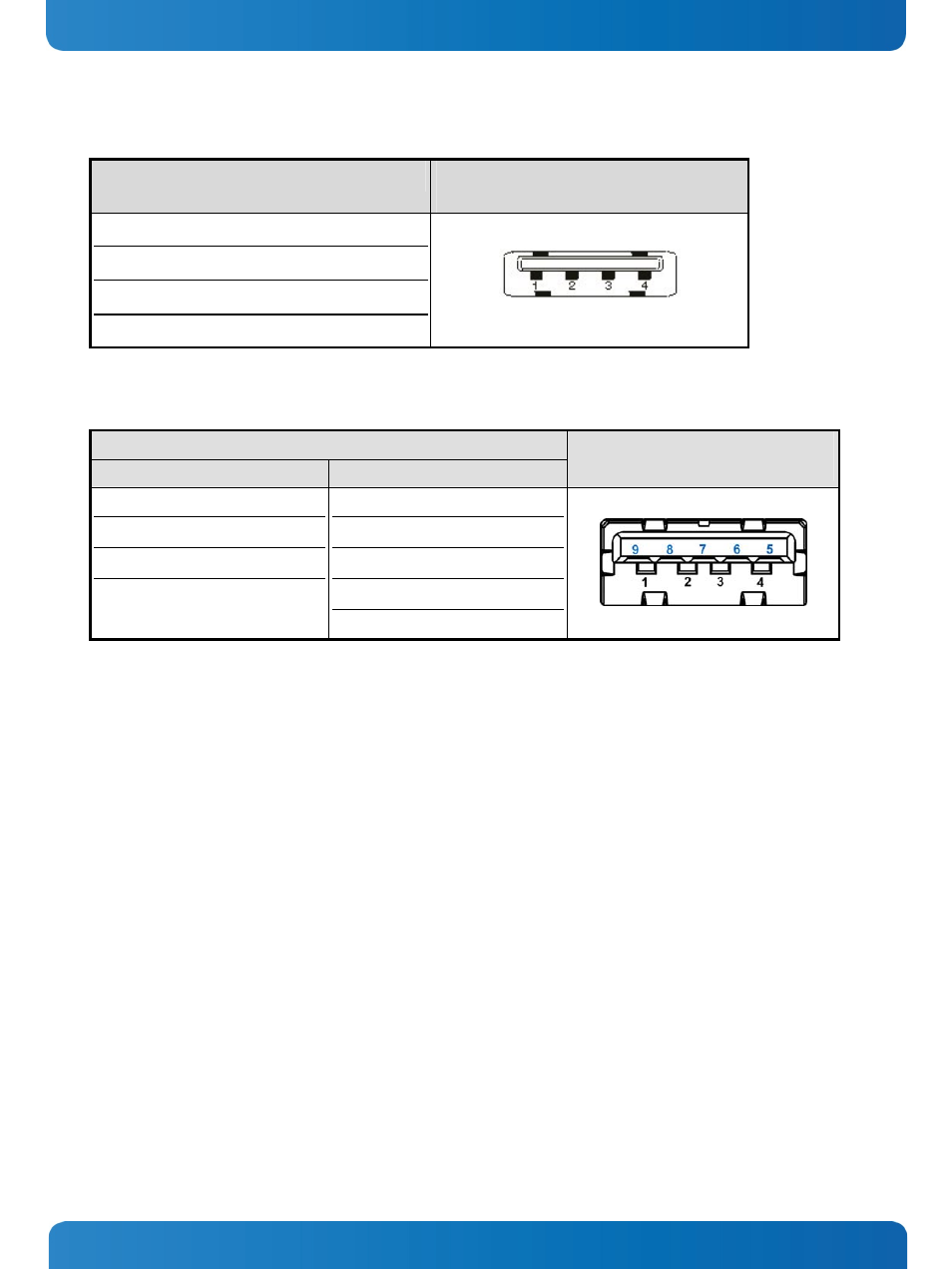

13.1.3. USB Port (2.0)
Pin Signal Name 4-pin USB Connector
Type A Version 2.0
1 VCC
2 Data-
3 Data+
4 GND
13.1.4. USB3.0 Port
Pin Signal Name
USB 2.0 contact pins USB 3.0 contact pins
9-pin USB Connector
Type A Version 3.0/2.0
1 VCC, fused (900 mA max.)
2 Data-
3 Data+
4 GND
5 StdA_SSRX-
6 StdA_SSRX+
7 GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
