7.6. Cover
The cover will be fixed to the chassis using four fixing brackets and three captive knurled screws. The fixing brackets are
located on the inside of the cover [three at the front edge (Fig. 24, pos. 4) and one at the rear edge (Fig. 24, pos. 3) of
the cover].
When closing the cover, make sure that the fixing brackets (Fig. 24, pos. 2 and pos. 4) will be inserted properly into the
corresponding retaining brackets of the cover (Fig. 20, pos. 5 and pos. 11).
3
2
1
4

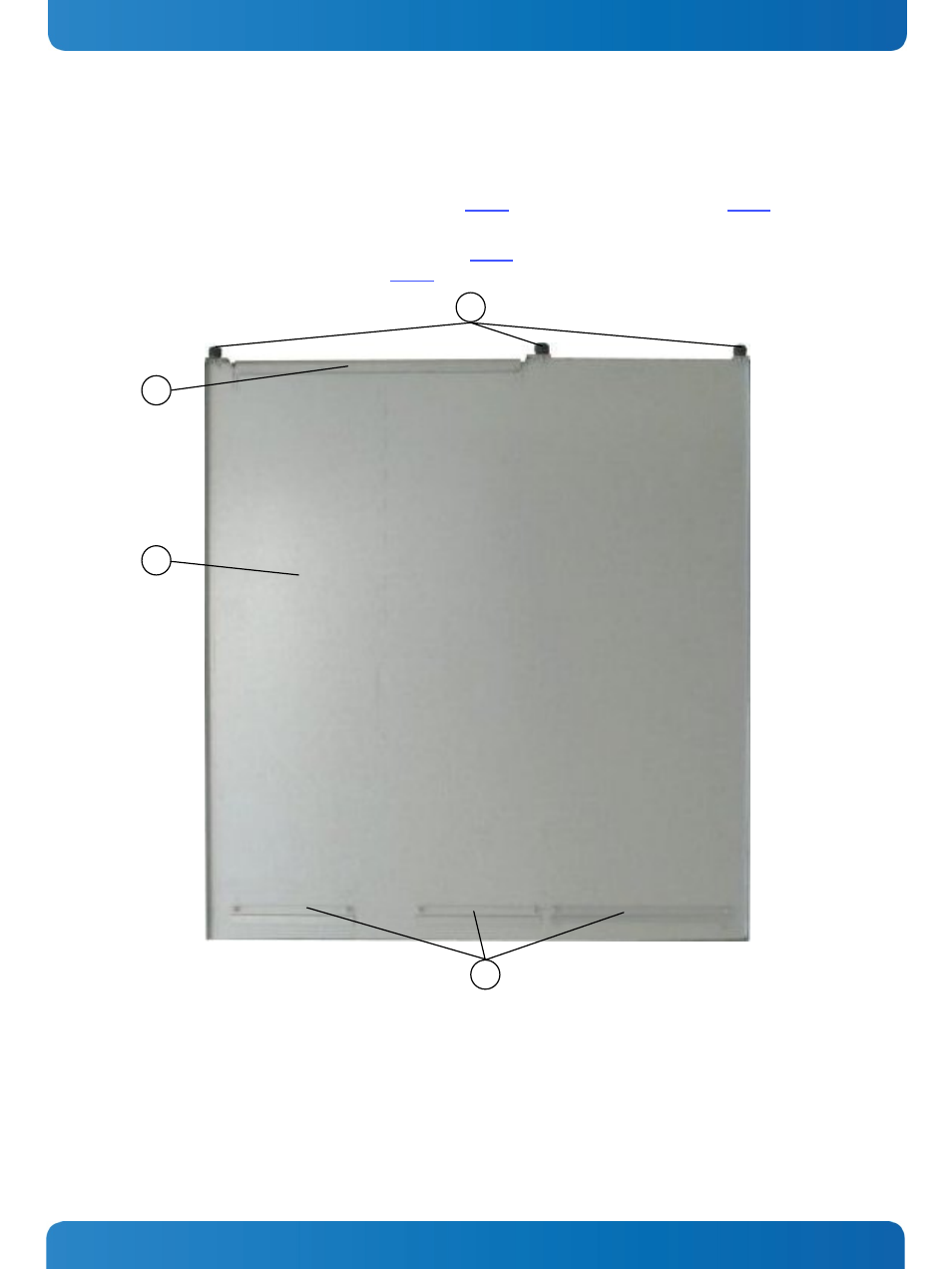

Fig. 24: Inside of the cover with fixing brackets
1 Inside of the cover
2 1x rear fixing bracket 3 Captive knurled screws
4 3x front fixing brackets
