11. Slide Rails (Option) KISS 1U_SBC_762 – User's Guide (Version 1.00)
11.
Slide Rails (Option)
Kontron provides slide rails for installing the KISS 1U in a 19" industrial cabinet. These slide rails can be ordered
separately.
The KISS 1U systems should be installed into a 19" industrial cabinet with slide rails (PN: 1016-5807).
Use therefore the rack slide rails mounting kit for KISS 1U and KISS 2U/4U V2 systems (PN: 1051-7200).
Kontron stocks slide rails for installing the KISS 1U in an industrial cabinet. These rails can be ordered separately.
1 2 3
4

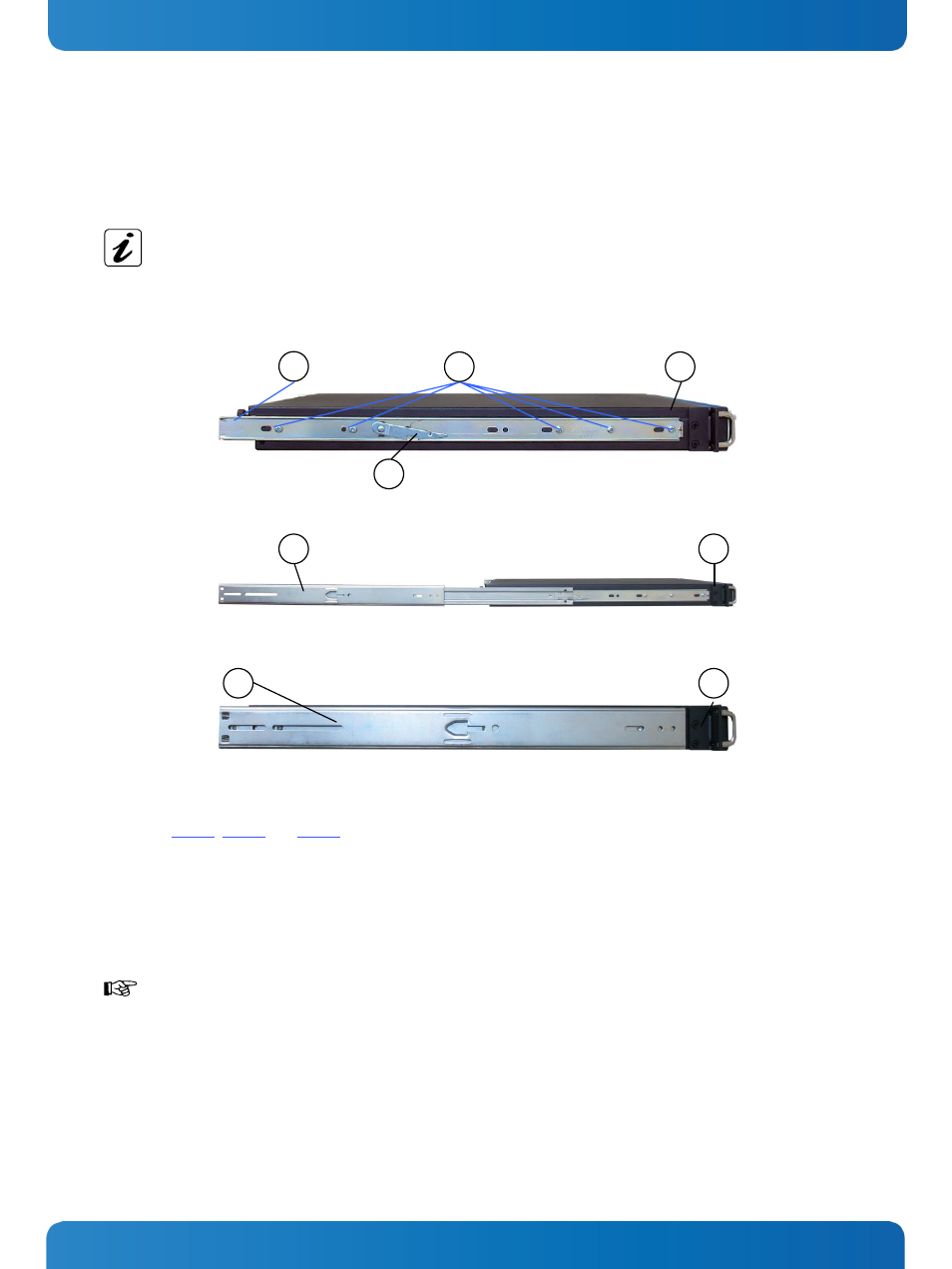

Fig. 32: Attaching the inner section of the slide rails
5 1
Fig. 33: KISS 1U platform with slide rails in pulled-out position
1 6
Fig. 34: KISS 1U platform with slide rails in pushed-in position
Legend for: Fig. 32, Fig. 33 and Fig. 34:
1 Side view of the KISS 1U
2 5x M4x6 Philips screw
(on each side)
3 Slide rail inner section
4 Locking/unlocking lever
5 Slide rail in pulled-out position
6 Slide rail in pushed-in position
Please ensure that only the screws provided (M4x6) are used to attach the slide rails to the KISS 1U.
