ETX®-CD / Specification
3.12 Onboard Fan Connector
This section describes how to connect a fan to the connector located directly on the ETX®-CD. With certain BIOS-settings
it is possible to control the fan depending on the Active Trip Point temperature. The fan switches on/off depending on the
adjusted Active Trip Point temperature. In order for this feature to function properly an ACPI compliant OS is necessary.
The ETX® CD can not control the revolutions per minute (R.P.M) of the fan.

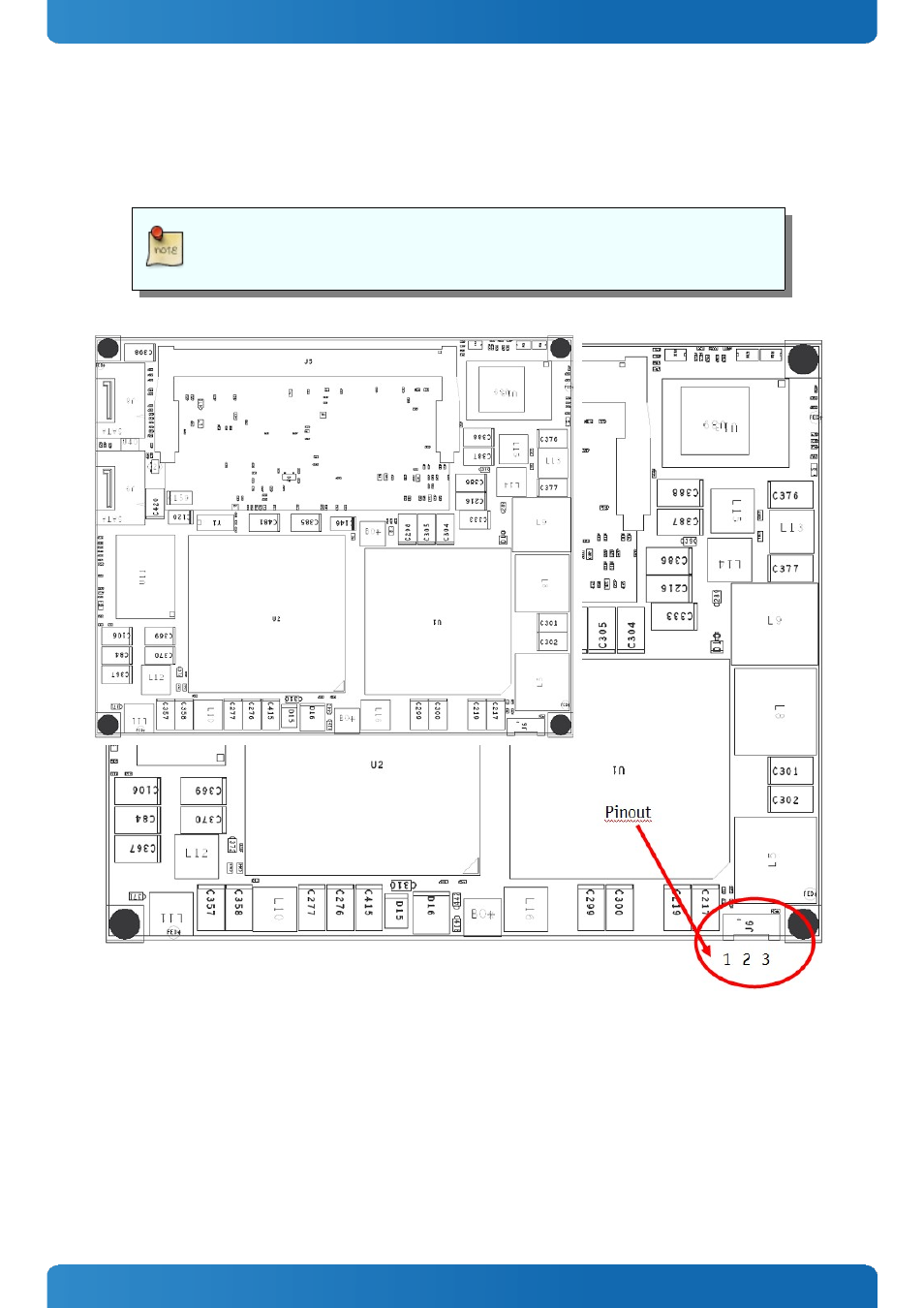

Location and Pinout of Fan Connector
21
