COM Express® Eval Carrier Type 6
19
5.2

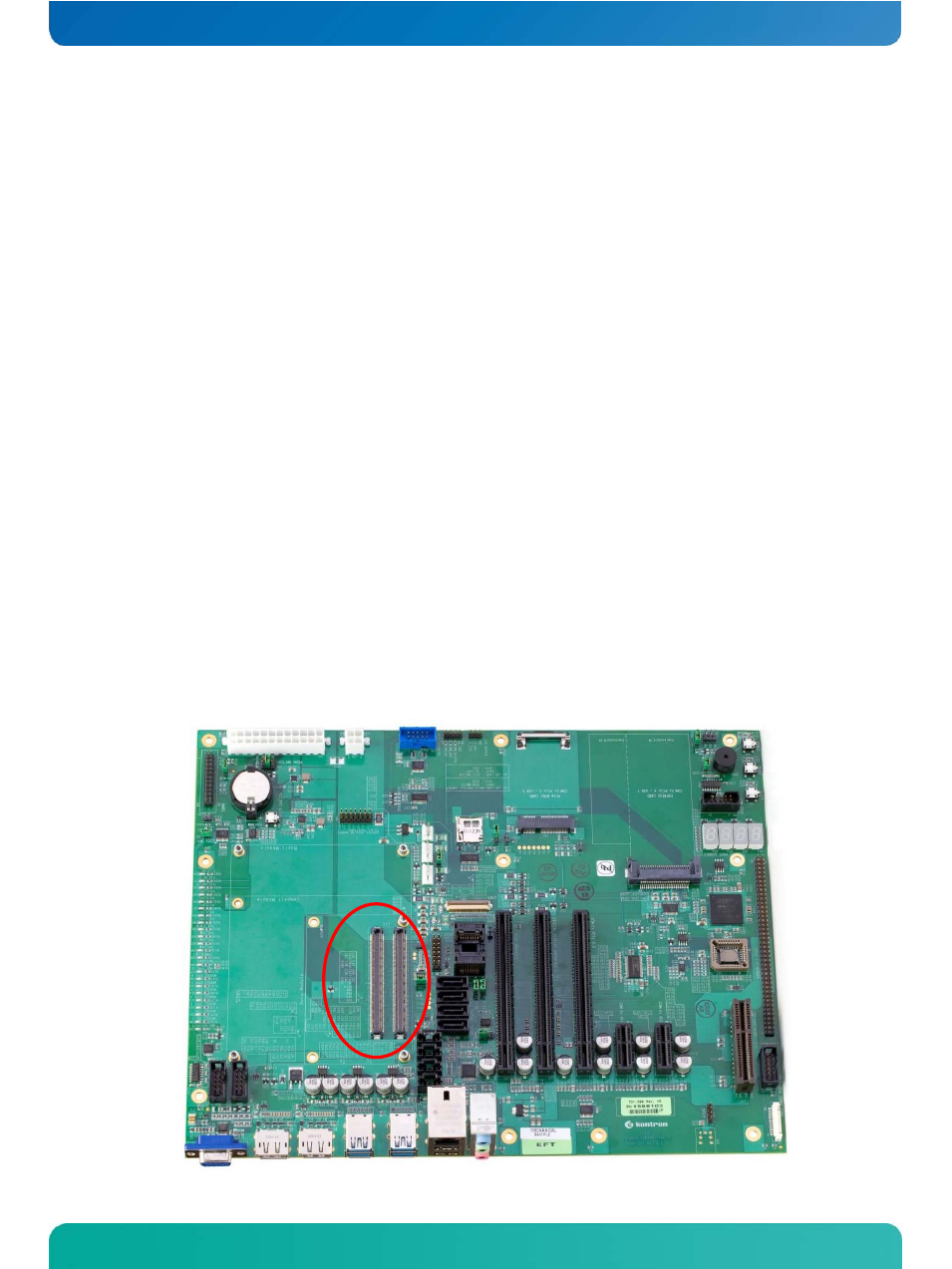

COM Express® connector
The COM Express® Eval Type 6 is an evaluation carrier board for Type 6 based
Computer-on-Modules. The type 6 module pin-out is based on two connectors
with 2 rows (Row A and B and Row C and D) with 440 pins overall (220 pins for
each of the two connectors). Please refer to your module documentation for
detailed pin-out descriptions.
