COMe-bSC2 / BIOS Operation

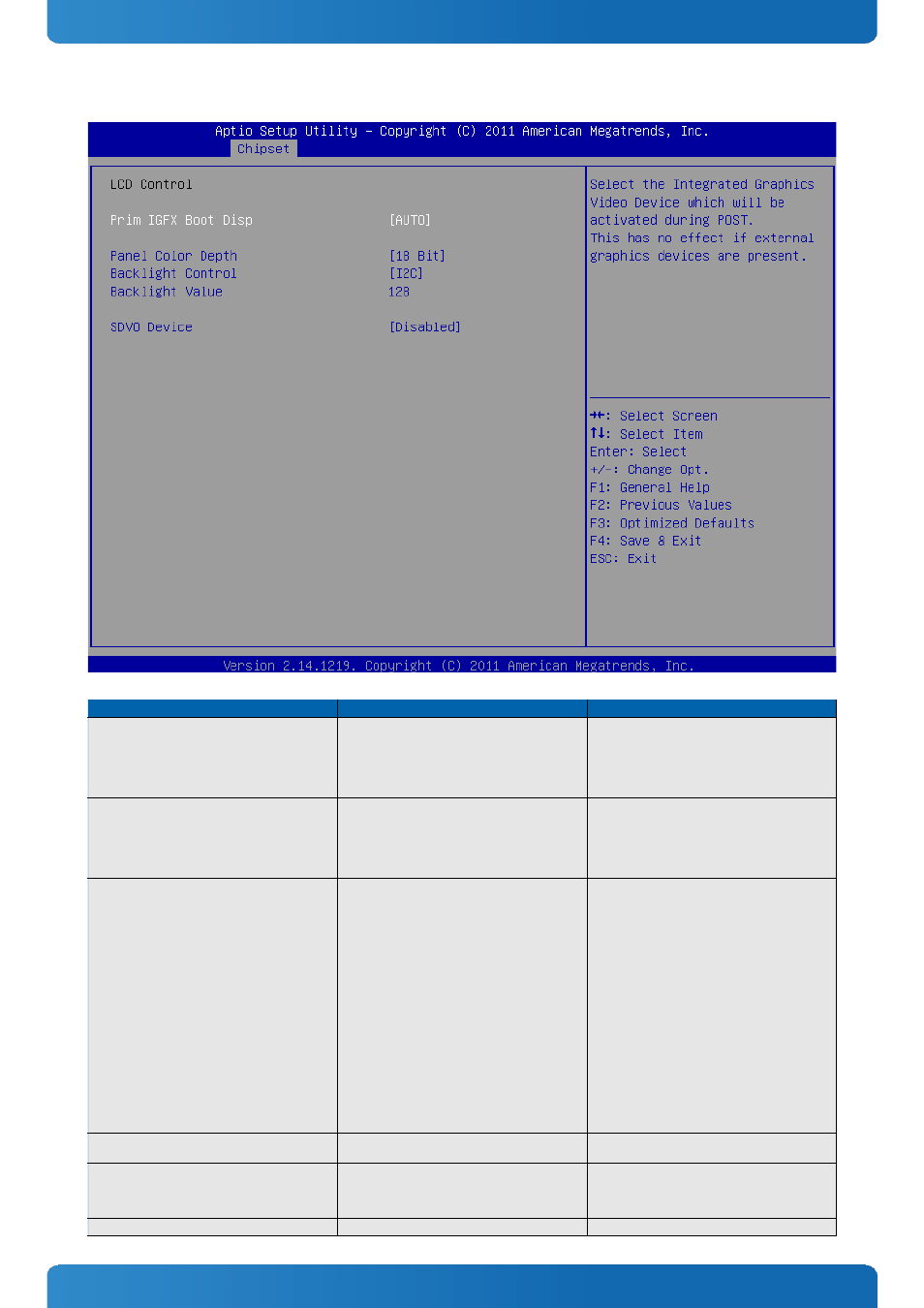

LCD Control
Feature
Options
Description
Prim IGFX Boot Disp
Auto
CRT
LVDS
EFP 1
EFP 2
EFP 3
Select the Integrated Graphics Video Device which will
be activated during POST. This has no effect if external
graphics devices arepresent
Sec IGFX Boot Disp
Disabled
CRT
LVDS
EFP 1
EFP 2
EFP 3
Select Secondary Integrated Graphics Display Device
Int. LVDS Panel Type
AUTO
VGA 640Ч480 1Ч18
WVGA 800Ч480 1Ч18
SVGA 800Ч600 1Ч18
XGA 1024Ч768 1Ч18
XGA 1024Ч768 1Ч24
WXGA 1280Ч768 1Ч24
WXGA 1280Ч768 1Ч24
WXGA 1280Ч800 1Ч18
WXGA 1366Ч768 1Ч24
WXGA+ 1440Ч900 2Ч18
WXGA+ 1440Ч900 2Ч24
SXGA 1280Ч1024 2Ч18
SXGA 1280Ч1024 2Ч24
WSXGA+ 1680Ч1050 2Ч18
WSXGA+ 1680Ч1050 2Ч24
UXGA 1600Ч1200 2Ч18
UXGA 1600Ч1200 2Ч24
WUXGA 1920Ч1200 2Ч18
WUXGA 1920Ч1200 2Ч24
Select LCD panel used by Internal Graphics Device by
selecting the appropriate setup item
Panel Color Depth
18 Bit
24 Bit
For internal LVDS EDID detection, select the Panel Color
Depth
Backlight Control
None/External
PWM
PWM Inverted
I2C
Backlight Control Setting
Backlight Value
128
Set LCD backlight brightness (0-255)
