6. Product Description PCI 761 – User’s Guide (V1.01)
www.kontron.com 9

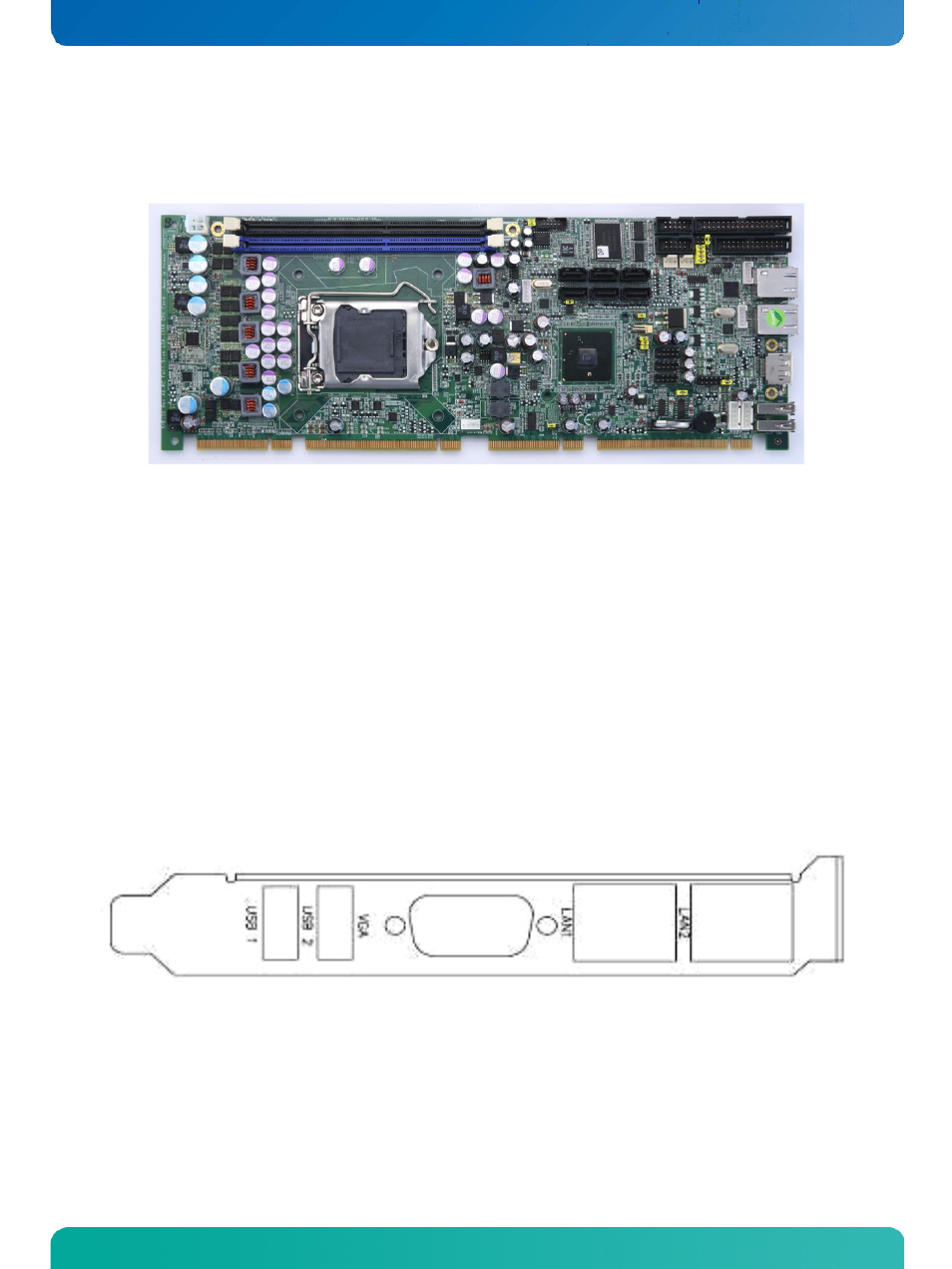

6.
Product Description
The PCI-761 PICMG 1.3 full-size Single Board Computer (SBC) supports LGA1156 socket for Intel® Pentium® Desktop
Processor(G6950), Intel® Core™ i3 Desktop Processor, Intel® Core™ i5 Desktop Processor, Intel® Core™ i7-800 series
Desktop Processor with 32/45nm technology and Transfer Rate 1066/1333 MHz.
The board integrates Intel® Q57 chipset that delivers outstanding system performance through high-bandwidth
interfaces, multiple I/O functions for interactive applications and various embedded computing solutions.
There are four 240-pin DDR3 DIMM sockets for dual channel DDR3 1066/1333, maximum memory capacity up to 8GB
(Assuming Dual Channel Mode with two x8 double sided unbuffered, non-ECC DIMM memory configuration).
The board also features dual Gigabit Ethernet, six serial ATA ports at maximum transfer rate up to 3Gbs, and SATA RAID
0/1/5/10 by ICH. Ten USB 2.0 high speed compliant ports and built-in Intel® HD Audio Digital Header can achieve the
best stability and reliability for industrial applications.
6.1. I/O Bracket
