KTQ77/Flex Users Guide
KTD-N0848-C Page 25
3 Connector Locations

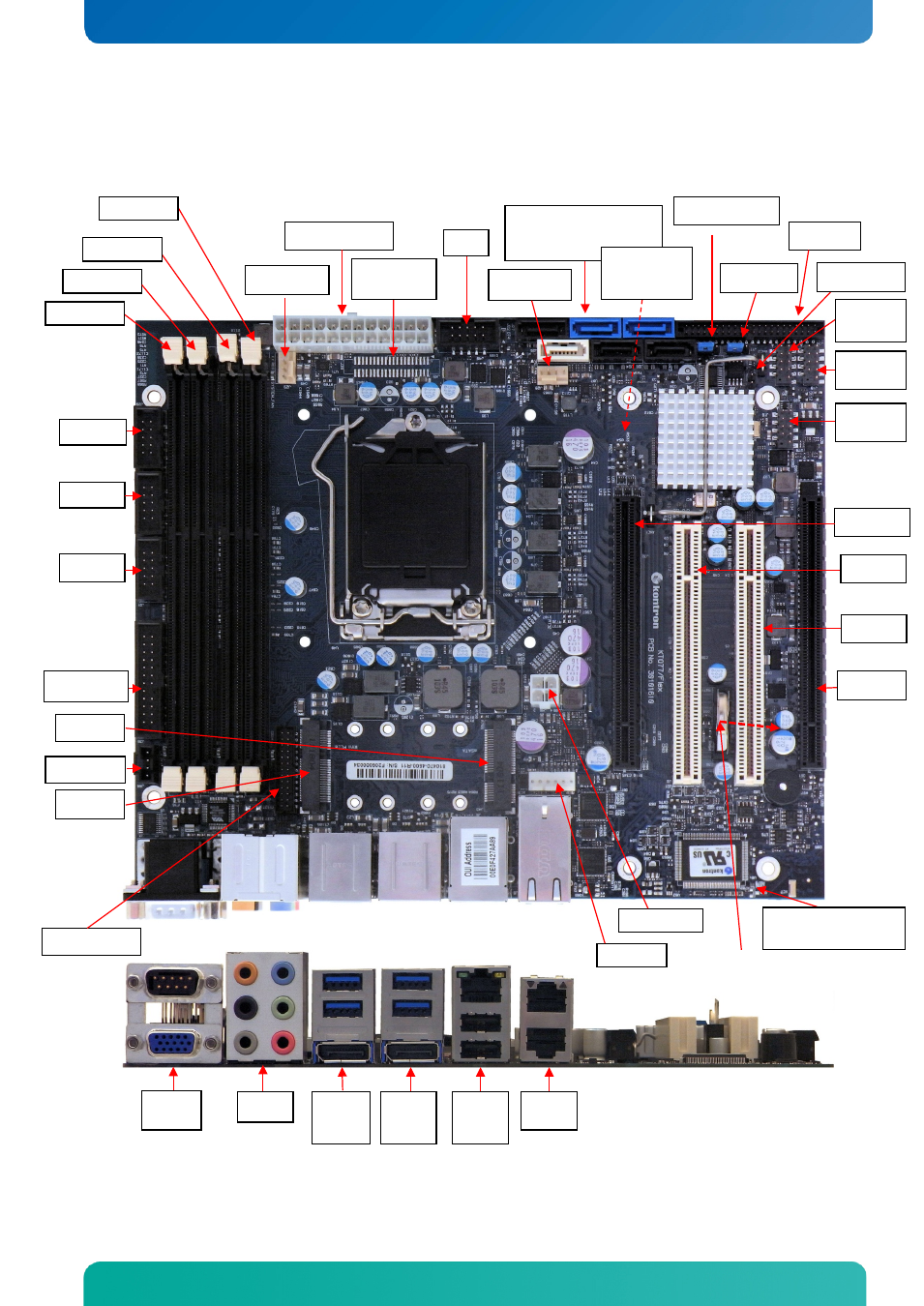

3.1 KTQ77/Flex – frontside
Connector Location
DDR3 B0
Feature
COM1
VGA
KbdMse
PCIex16
ATX/ BTXPWR
Audio
USB12
USB13
Frontpanel
CDROM
Audioheader
COM3
COM2
ATX+12V
FAN_SYS
FAN_CPU
ETH1
USB5
USB4
COM4 PCI0
ETH2
ETH3
ClrCMOS
Sata5 - Sata0 - Sata1
Sata2 - Sata3 - Sata4
(see note)
LVDS
(optionally)
PCIex4
SPI recover
SPI
USB1
USB0
DP0
USB3
USB2
DP1
Notes: Sata0/Sata1support up to 6GB/s and Sata2/Sata3/Sata4/Sata5 support up to 3GB/S.
USB0 – USB3 supports USB3.0/USB2.0, USB4 – USB13 supports USB2.0.
XDP-PCH
(backside)
(see note)
mSATA
mPCIe
PCI1
USB8
USB9
USB10
USB11
J12 (not used) DDR3 A0
DDR3 B1
DDR3 A1
Battery is moved in final
board release
R978 System
Temperature Sensor
