KTQ77/Flex Users Guide
KTD-N0848-C Page 22
2.6 Power Consumption
In order to ensure safe operation of the board, the ATX12V power supply must monitor the supply
voltage and shut down if the supplies are out of range – refer to the hardware manual for the actual
power supply specification. The KTQ77 board is powered through the ATX/BTX connector and
ATX+12V connector. Both connectors must be used in according to the ATX12V PSU standard.
The requirements to the supply voltages are as follows:

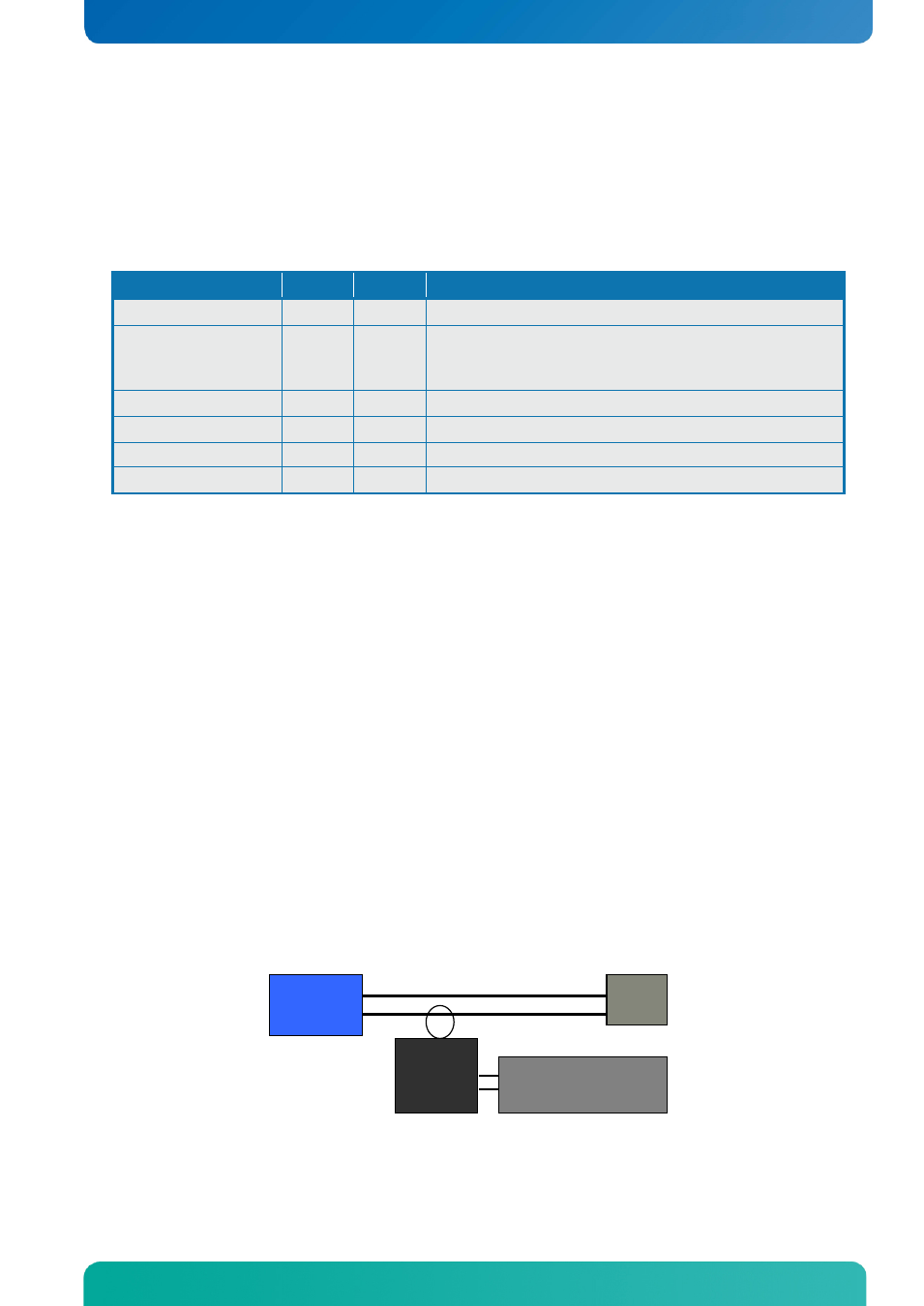

Supply Min Max Note
VCC3.3 3.135V 3.465V Should be
±5% for compliance with the ATX specification
Vcc 4.75V 5.25V Should be
±5% for compliance with the ATX specification.
Should be minimum 5.00V measured at USB connectors
in order to meet the requirements of USB standard.
+12V 11.4V 12.6V Should be
±5% for compliance with the ATX specification
–12V –13.2V –10.8V Should be
±10% for compliance with the ATX specification
-5V -5,50V -4.5V Not required for the KTQ77 board
5VSB 4.75V 5.25V Should be
±5% for compliance with the ATX specification
More detailed Static Power Consumption
On the following pages the power consumption of the KTQ77 Board is measured under:
1- DOS, idle, mean
2- Windows7, Running 3DMARK 2005 & BiT 6, mean
3- S1, mean
4- S3, mean
5- S4, mean
The following items were used in the test setup:
Low Power Setup
Standard system configuration equipped with PCI card, Internal graphics, 2x SATA disks, Intel i3
CPU, 2x DIMM 2GB Modules, DP Monitor, Keyboard & Mouse. 1x 1-4GB USB Flash Stick, 1x 1GB
LAN
High Power Setup
Standard system configuration equipped with PCI card, PCIex4, PCIex16, miniPCIe WLAN, 4x
SATA disks, Intel i7 CPU, 4x DIMM 2GB Modules, DP Monitor, Keyboard & Mouse, 3x 1-4GB USB
Flash Stick, 3x 1GB LAN.
Note: The Power consumption of Display and HD are not included.
ATX supplies
KTQ77 PSU
Gnd
Current
Probe
Tektronix DPO 2024
System Specification
