KTQM67 Users Guide
KTD-N0819-K Page 31

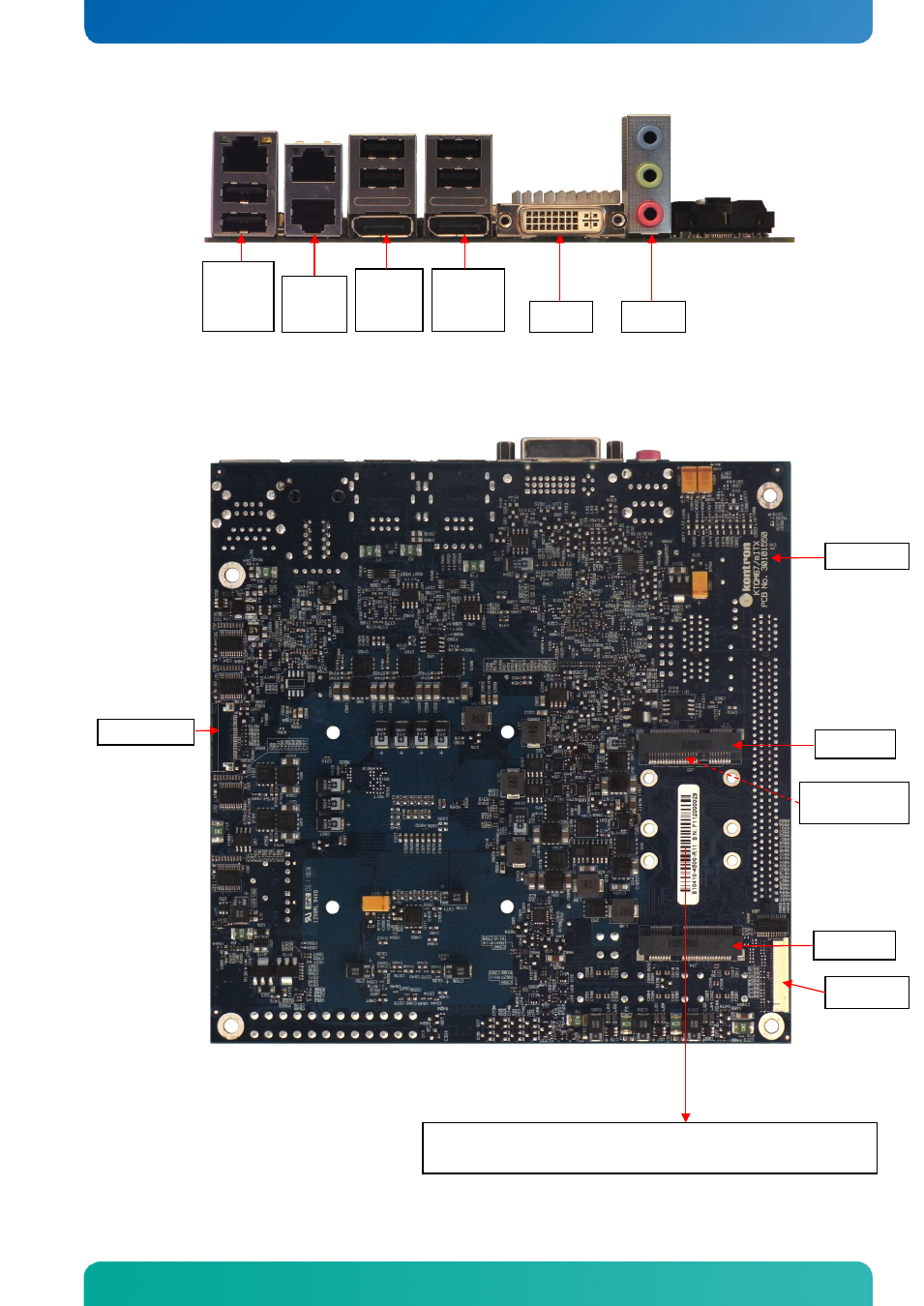

3.2 KTQM67/mITX – IO Bracket area
3.3 KTQM67/mITX - backside
LPT (*)
mPCIe1
XDP-CPU (*)
PCB no.
DVI-I Audio
ETH1
USB5
USB4
ETH2
ETH3
USB1
USB0
DP0 USB3
USB2
DP1
mPCIe0
Connector Location
XDP-PCH (*)
below mPCIe1
(*) The XDP and LPT connectors are not supported and not mounted in volume production.
Kontron sub-supplier number. Please use the SN label on the
PCIe x16 slot which is the board SN matching the SN in BIOS.
