Page 14
KTQM67 Users Guide
KTD-N0819-K Page 14
2.2 System overview

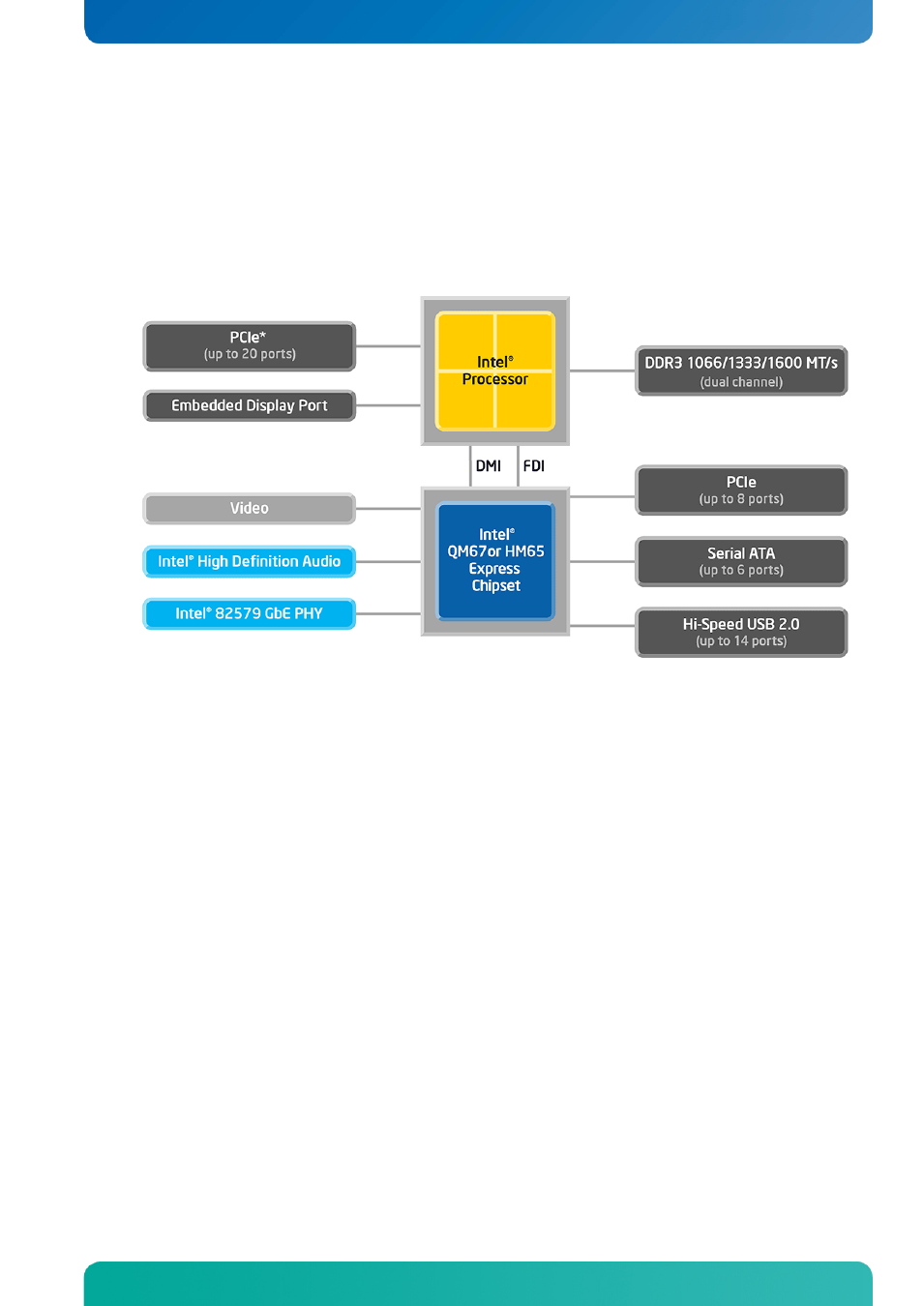

The block diagram below shows the architecture and main components of the KTQM67. The key
component on the board is the Intel
®
QM67 (Cougar Point) Mobile Express Chipset.
Some components (PCI slots) are optional depending on board type.
More detailed block diagram on next page.
System Specification
