KTD-N0800-0 Page 5
KT-PCIe-DVI-HDMI-I Users Guide

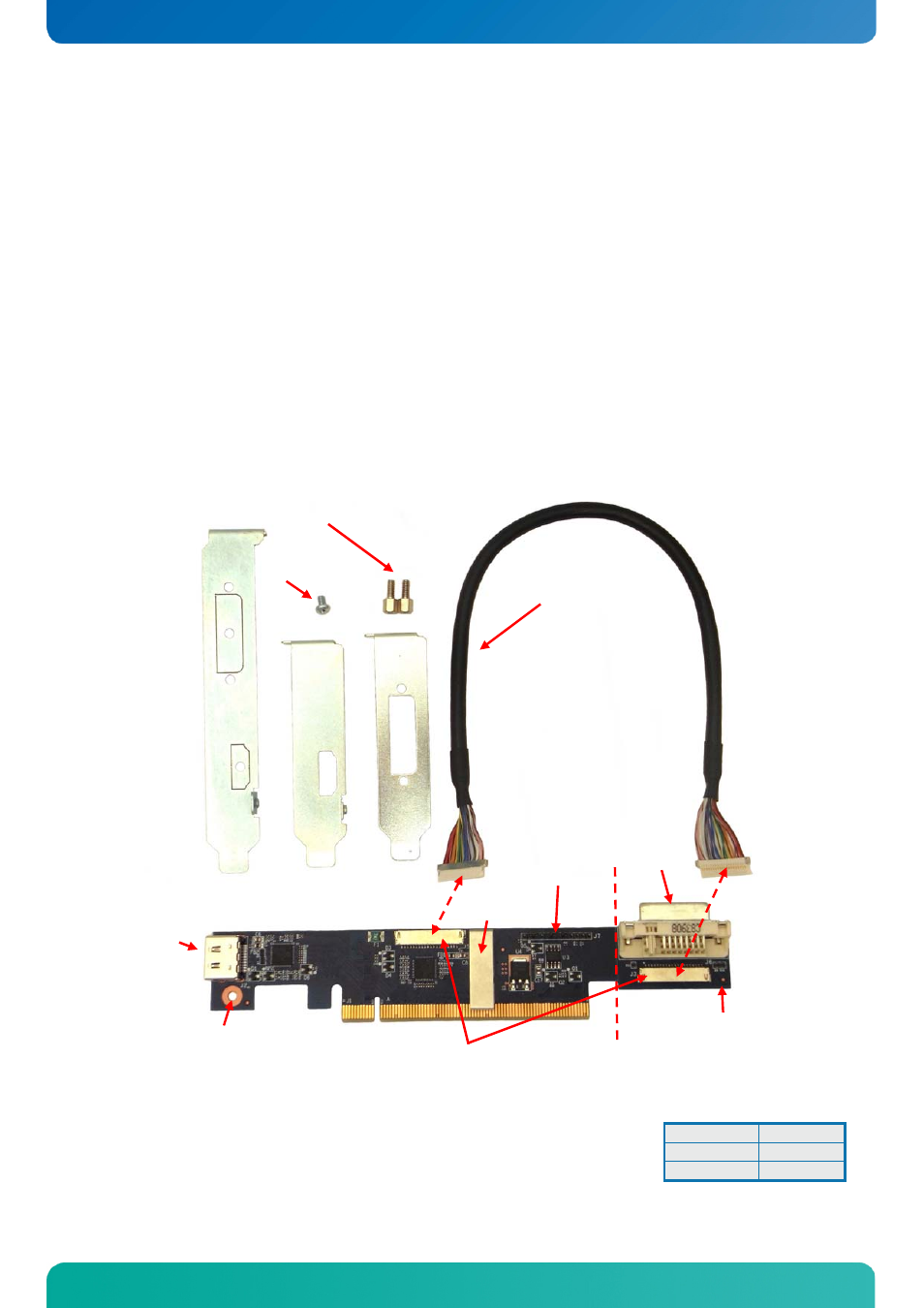

Break of module
(DVI connector adapter)
Lock-Clip
DVI
821524
for fixing bracket
for fixing DVI connector
DVI-SIL
Break line
Jumpers
Introduction
When the KT-PCIe-DVI-HDMI-I card is plugged into the PCI-Expressx16 connector then the motherboard
automatically detects the card and select TMDS output. The card operates at pixel rates of up to 165MHz per
link, supporting 1920x1200 panels at a 60Hz refresh rate.
• Low profile DVI/HDMI module (< 35mm above MB PCB)
• High-speed
TMDS.
• Panel resolution up to 1920x1200 or similar.
• Support independent DVI and HDMI dual display.
• Including Lock-Clip to fix the module to the PCIe socket.
• No tools required for mounting/dismounting the module.
• HDMI and DVI Interface, both manage up to 165Mpixels/s
• HDMI connector mounted on the IO panel side.
• DVI connector via SIL-20p and cable kit 821524.
• DVI 1.0 and HDMI compliant.
• Complete Windows and DOS support.
• Included Low Profile Brackets for HDMI
• Included Full Height ATX Bracket for HDMI, with “break-off-plate” for HDMI and for DMI.
• Included Low Profile Bracket for DVI (fit the 821524 kit)
1
Part no. 820977
PCB no. 30103350
Assem. no. 69300000
Introduction
DVI HDMI DVI
+
HDMI
HDMI
