KT-PCIe-DVI-HDMI-I Users Guide
6 Installation Guide
These KT-PCIe cards fits into a standard PCIe connector like the Molex 877159308 PCIe edge connector
which has no integrated PCIe card lock.
The 820977 kit contains:
1. Cable 821524
2. Two Hex Nuts for the DVI connector to fix on a bracket
3. The 820877 module
4. Low Profile Brackets for HDMI
5. Low Profile Brackets for DVI
6. Full Height ATX Bracket for HDMI and DVI
7. Screw for fixing bracket to module

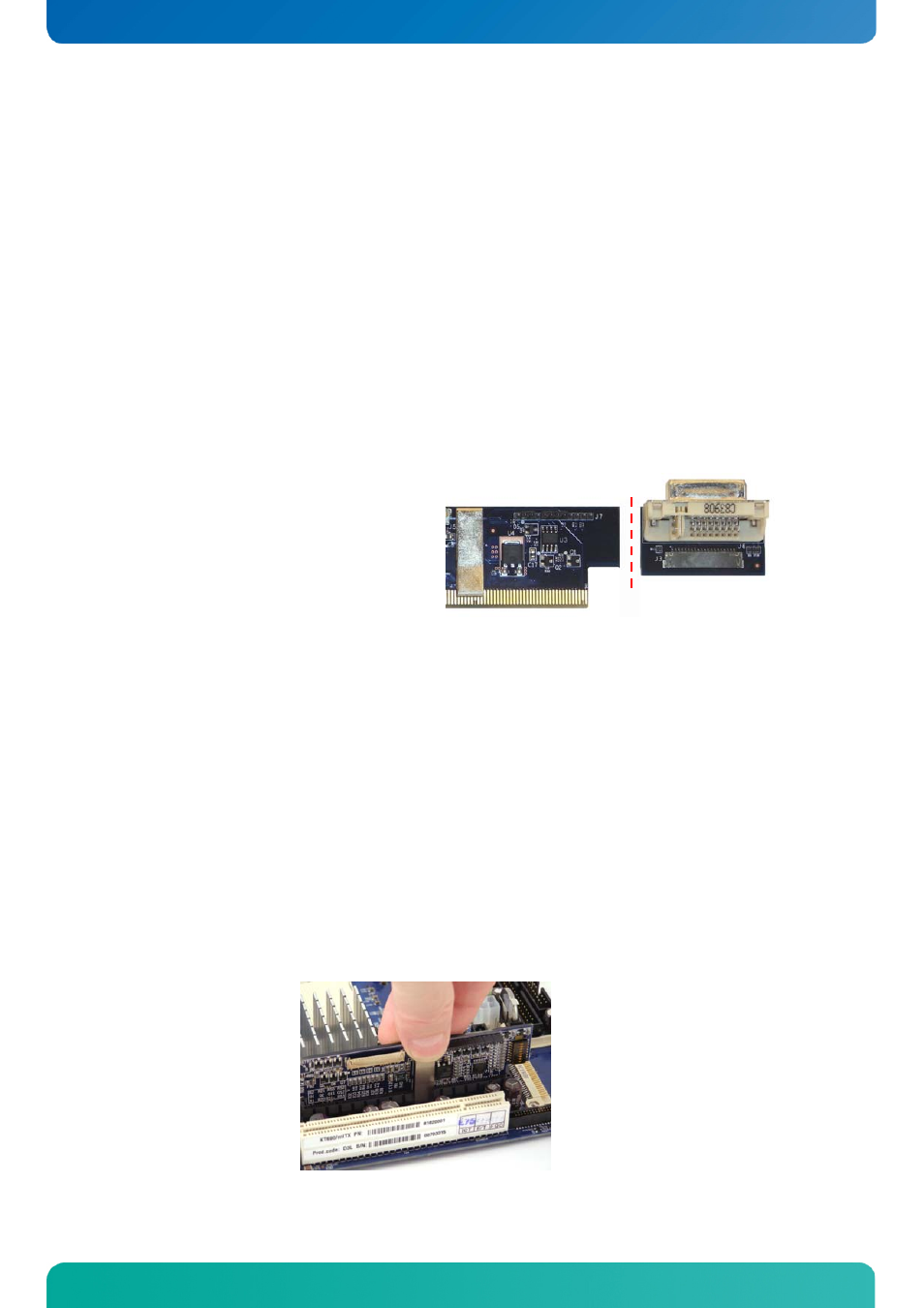

Carefully brake of the DVI Connector adapter.
The cable 821524 can be used to interface the module and the DVI Connector adapter.
If DVI Bracket shall be used then fix the DVI connector to the bracket via the two Hex Nuts.
If HDMI Bracket shall be used then fix HDMI Bracket to the module by screw.
Insert the module to the Motherboard (KTGM45, KTQ45 or KTG41) via the PCIex16 slot nearest the CPU.
No special settings required in BIOS.
OS drivers include support for the module.
Boot into OS and use the Intel Graphics Media Accelerator Driver to select requested display configuration.
The Lock-Clip is use to fix the module into the PCIex16 slot. In order to release the Lock-Clip press by your
thumb on the top part of the Lock-clip as indicated on the picture below.
