820153 DC-DC Supply 10-25Vin 150W
KTD-00696-D Public User Manual Date: 2008-04-24 Page 2 of 9
Introduction
The 820153 DC-DC Power Supply is a fully compliant ATX power supply designed to power a wide variety of
motherboards like the KT690mITX, 786LCD/mITX, 886LCD-M and 986LCD-M families of boards. It has
included cable kit inclusive ATX+12V cable, as required by the 986LCD-M family, and it is supporting a wider
temperature range than the standard embedded PC range 0 - 60ºC.

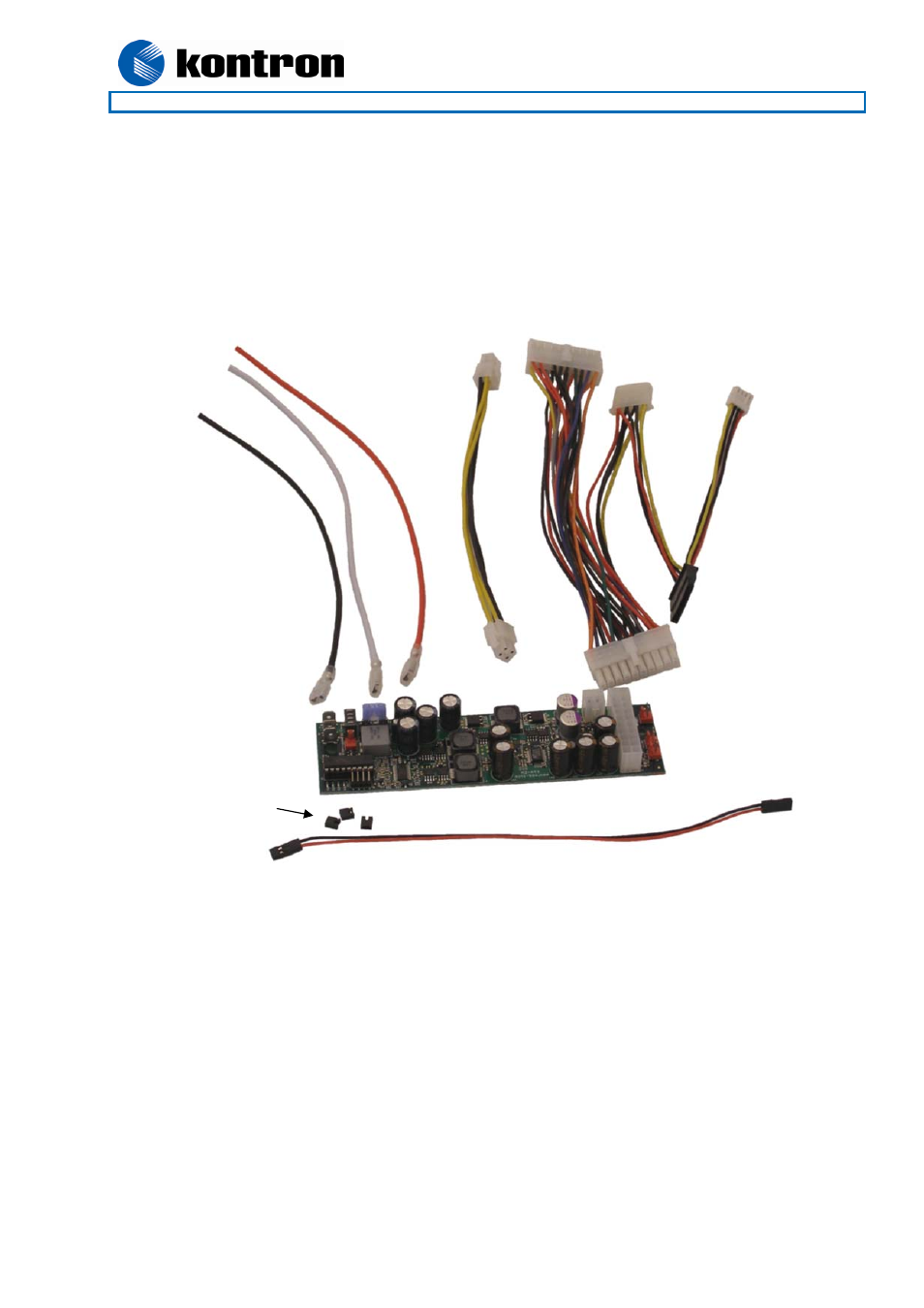

The 820153 comes with complete cable harness consisting of:
- ATX cable (250mm) with 2x HDD power plugs and 1x FDD power plug.
- ATX+12V Power cable (mm).
- Power input wires, 3 pieces (red, black and white) (300mm) open-ended.
- 2 wire cable for implementing PSU controlled motherboard Power On Button. (Note 1)
- Set of Jumpers to select between various power sequencing schemes. (Note 1)
Note 1: Used for battery driven application. Not needed for standard ATX PSU mode.
ATX Cable
ATX+12V Cable
+V Cable
-V Cable
SW Cable
Power On Button Cable
Jumpers
