3 compactpci bus connectors – Kontron CP-RIO6-923-F User Manual
Page 25
Hardware Description
11
CP-RIO6-923-F User Guide
www.kontron.com
The table below shows the pin assignment of one M12 D-coded female connector.
3.3 CompactPCI Bus Connectors
Three daughter card connecters (rJ3, rJ4 and rJ5) are used for the connection between the CP-RIO6-923-F
and the backplane.
• rJ3 connects FL Port 1 to FL Port 8 and FL Port f
• rJ4 connects FL Port 20 to FL Port 23
• rJ5 connects FL Port 9 to FL Port 19
Connector rJ3 is not implemented on the CP-RIO6-923-F-8M12.

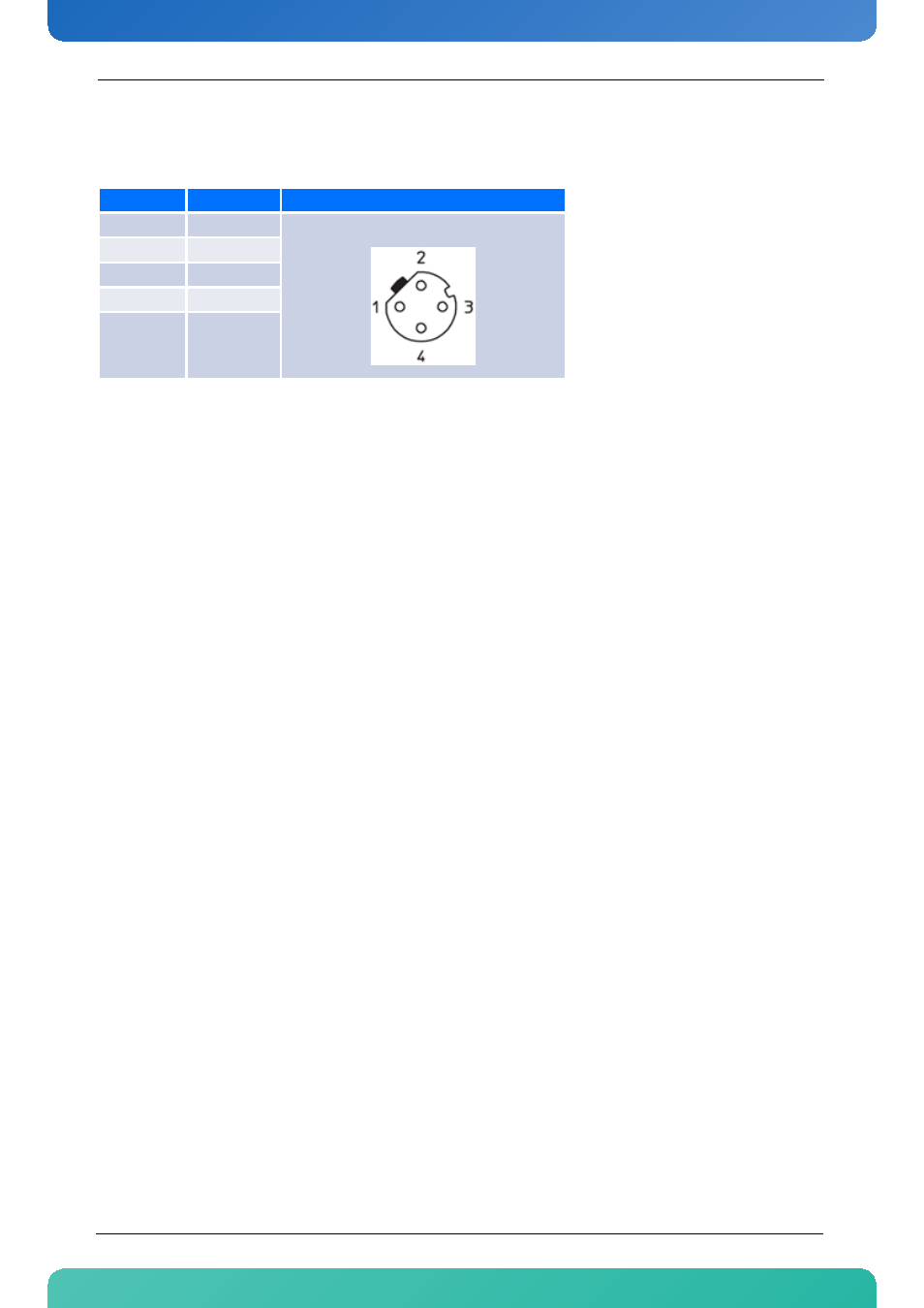

Table 3-4:
M12 D-coded Female Connector Pin Assignment
Pin
Signal
Industrial Ethernet M12
1
TD+
2
RD+
3
TD-
4
RD-
Housing
Shield
