Hardware Description
10 CP-RIO6-923 User Guide
www.kontron.com
Note that ports marked with a '-' are not available on the RIO module.
On the CP-RIO6-923-9, backplane contacts of FL12 to FL14 are removed to increase signal quality in applica-
tions were these ports connect to other cPCI slots on the backplane. Covers are plugged into the correspond-
ing non-functional RJ45 ports.
The RJ45 connectors are not equipped with LEDs for displaying the link status or activity. These are on the
switch board front panel.

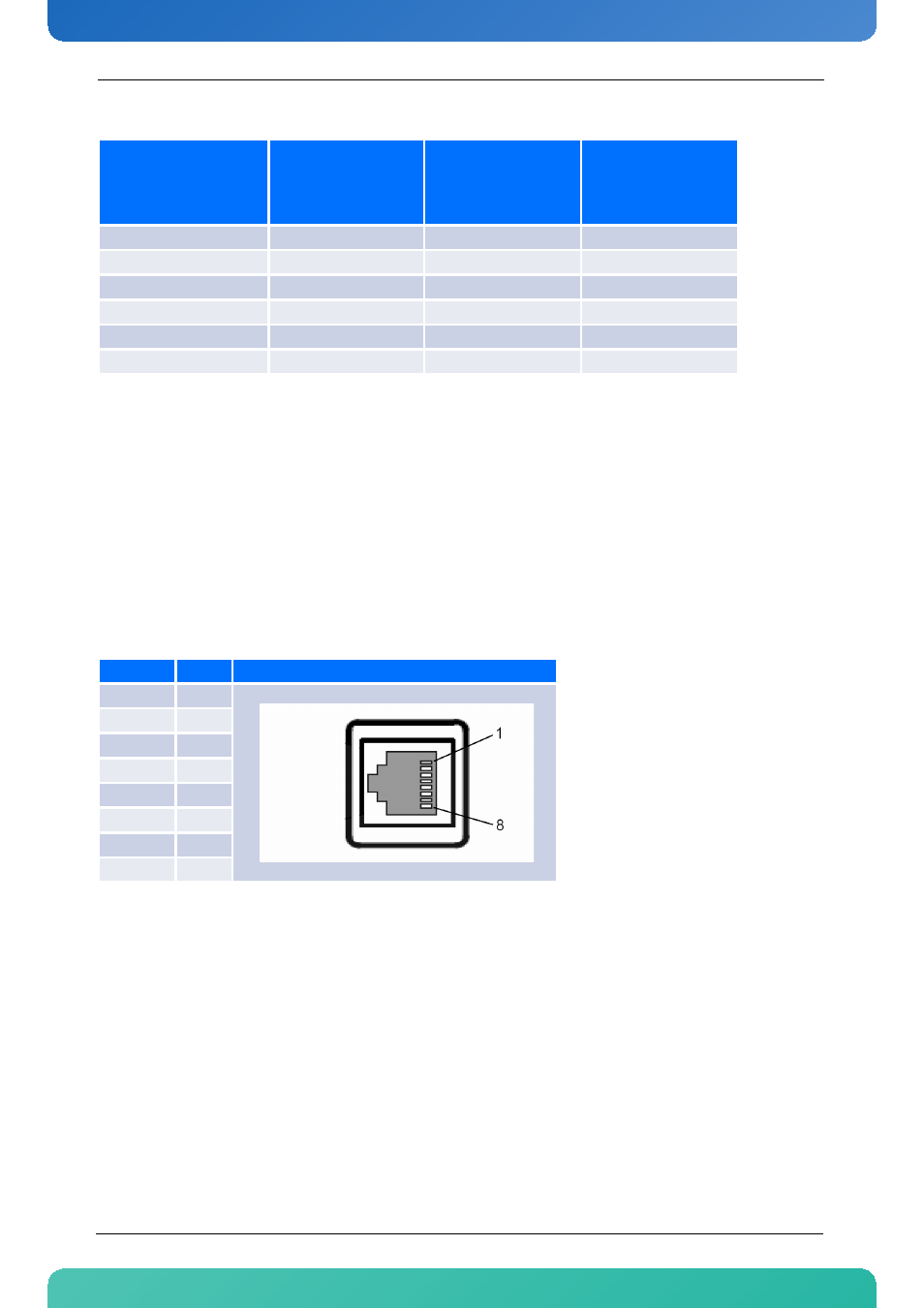

The following table shows the pin assignment of one 10/100/1000BASE-T RJ45 connector.
FL_18 18x 18x
FL_19 19x 19x
FL_20 20x 20x
FL_21 21x 21x
FL_22 22x 22x
FL_23 23x 23x
Table 3-2: RJ45 Pin Assignment
Signal Pin
BI_DB+ 1
BI_DB- 2
BI_DA+ 3
BI_DD+ 4
BI_DD- 5
BI_DA- 6
BI_DC+ 7
BI_DC- 8
Table 3-1: Ethernet Port Mapping (Continued)
PICMG 2.16 Backplane
Port
CP-RIO6-923 Dual-
Slot Port Label
CP-RIO6-923 Single-
Slot Port Label
CP-RIO6-923-9
Single-Slot Port
Label
