KMC Controls CTE-6001 User Manual
Installation guide, Wiring mounting, Adjustments and calibration
![background image](/manuals/637723/1/background.png)
BAC-1xx36 Series (3 Relays, 6 Analog Outputs)
1
Installation Guide
© 2009 KMC Controls, Inc.
717-019-25A
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com; [email protected]
Installation Guide
Manual Reset High Limit
CTE-6001
Wiring
Mounting
1.
Drill an opening in the supply air duct to accept
the 3/4" diameter sensor.
2. Mount the unit on the duct using three self-
tapping screws in the 7/32" diameter mounting
holes.
1. Thread wiring for the low-voltage or line-voltage
circuit through the two 7/8" knockouts.
NOTE: If more than one CTE-6001 is connected to
the same load, connect them in series.
2. Connect the front terminals. Orient the cup
washer so the flat surface is against the terminal.
(See Illustration 3.)
Adjustments and Calibration
The CTE-6001 is shipped with a preset “cut-out”
temperature of 135° F (57° C). The temperature
setpoint is field adjustable in a range of 100 to 250° F
(38 to 121° C).
To set “cut-out” temperature:
1. Loosen the screw in the setpoint adjustment lever.
(See Illustration 1.)
2. Slide the LEVER to the desired temperature.
NOTE: Do NOT rotate the DIAL.
3. Retighten the screw in the lever.
Maintenance
Periodically inspect the element for dirt/dust build-
up. Each component is designed for dependable,
long term reliability and performance. Careful
installation will also ensure long term reliability and
performance.

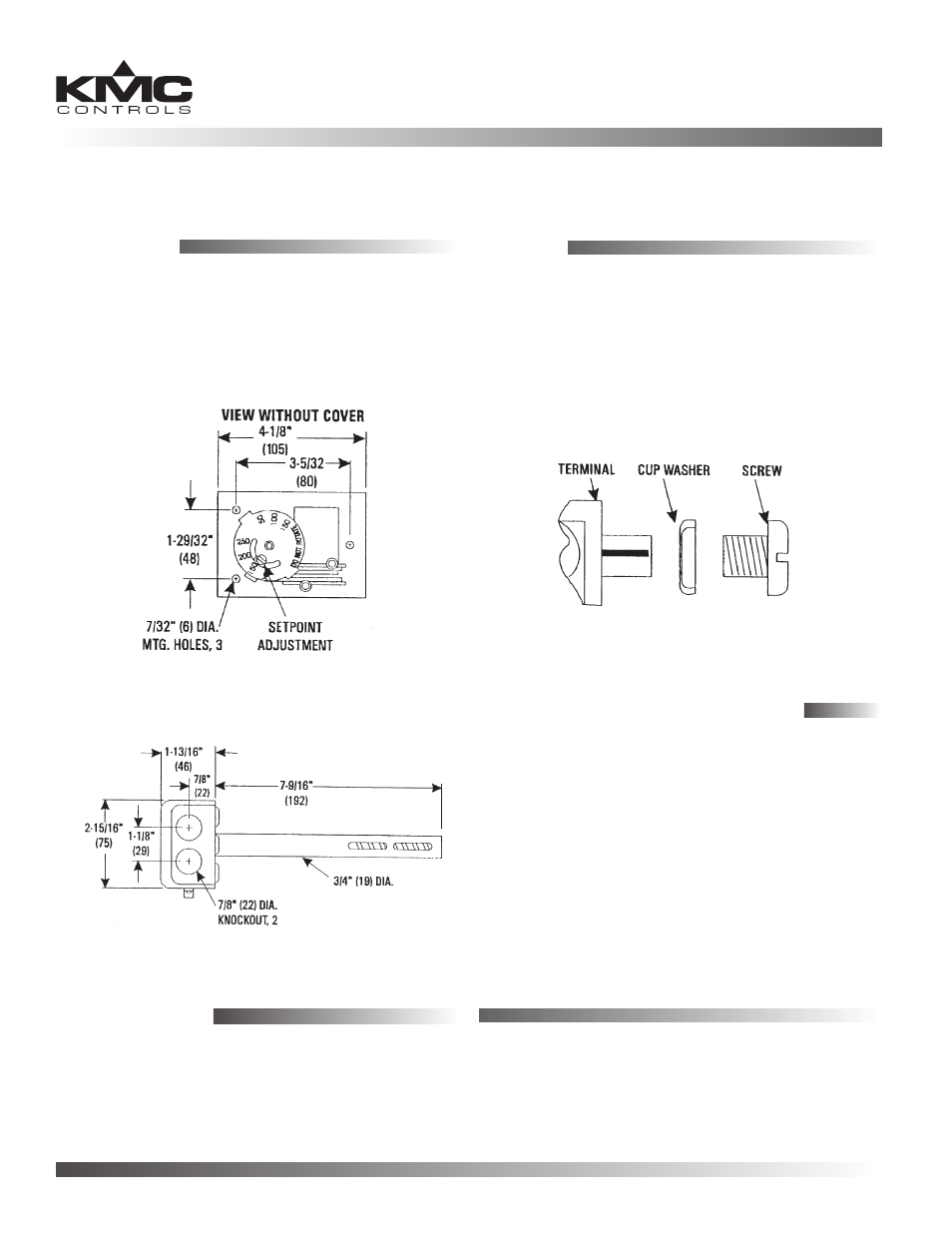

Illustration 1—Setpoint Adjustment and Dimensions
Illustration 2—Side Dimensions
Illustration 3—Terminal (Exploded View)
