Installation Guide

Differential Pressure Switches

CSE-1102/1103

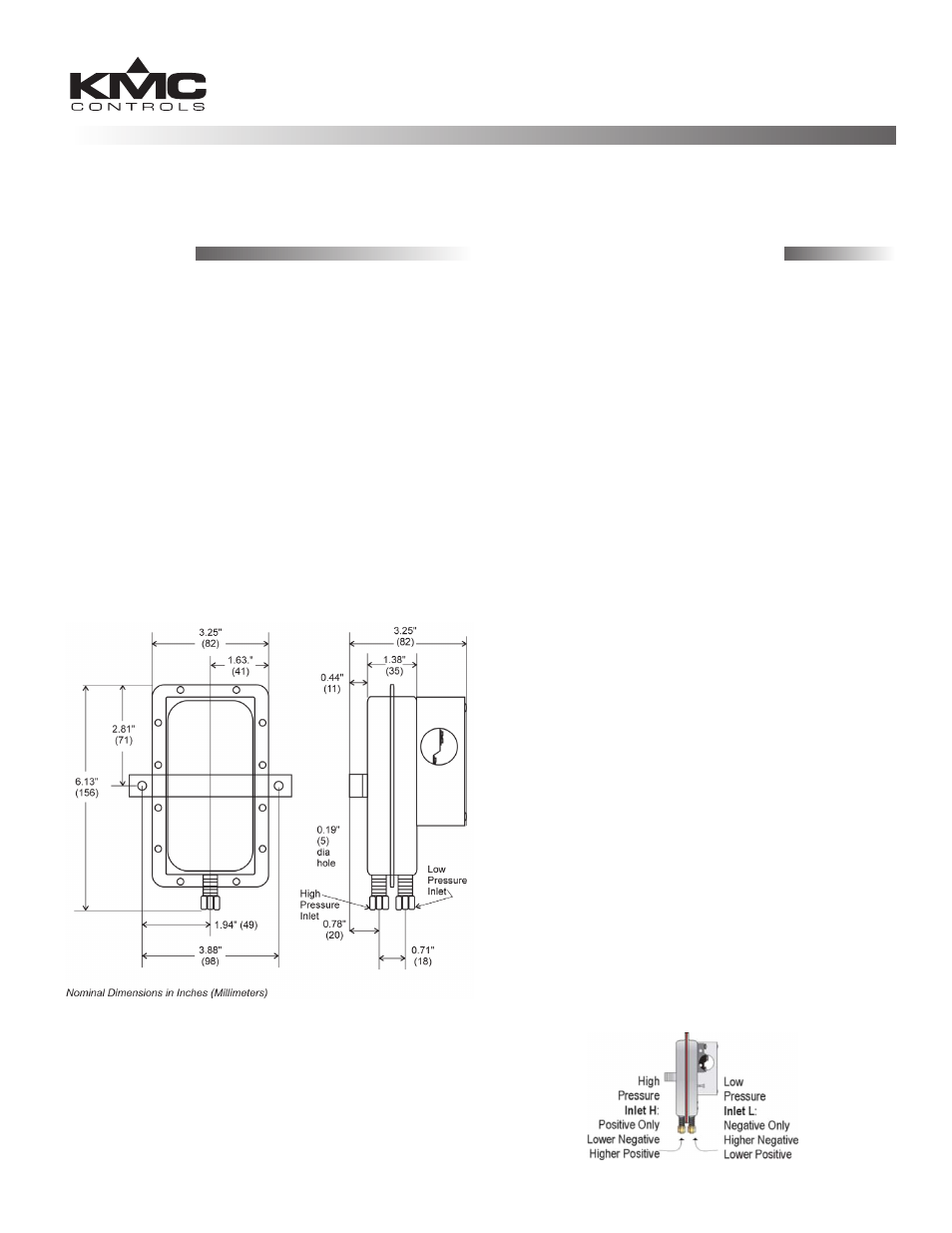

Mounting

Select a mounting location that is free from vibration.

Mount in any vertical plane in order to obtain the

lowest specified operating setpoint. Avoid mounting

with the sample line connections in the “up” posi-

tion. Surface mount via the two 3/16" diameter holes

in the integral mounting bracket. The mounting

holes are 3-7/8" apart.
1. Align the unit vertically with the barbed ports

at the bottom (alternately pointing to the left or

right).

2. Using the two 3/16" mounting holes, attach to the

ducting.

3. Using the knockout, attach a 1/2" conduit.
4. Connect wires to the screw terminals. See the

Wiring section.

Connecting Sensing Ports

NOTE: A sampling probe should be located

a minimum of 1.5 duct diameters

downstream from the air source. Install the

sampling probe as close to the center of the

airstream as possible.

NOTE: For sample lines of up to 10 feet, 1/4" OD

tubing is acceptable. For lines up to 20 feet,

use 1/4" ID tubing. For lines up to 60 feet,

use 1/2" ID tubing.

To attach a sampling line:
• To a CSE-1102 with barbed connections, use 1/4

to 3/8" (6 to 9 mm) tubing for air sampling lines

and connect the tubing to the appropriate port(s).

• To a CSE-1103 with compression connections,

connect 1/4" OD copper to the compression

fitting(s).

Connect the sampling lines according to the applica-

tion:
• Positive Pressure Only: Connect the sample line

to inlet H. (Inlet L remains open to the atmo-

sphere.)

• Negative Pressure Only: Connect the sample line

to inlet L. (Inlet H remains open to the atmo-

sphere.)

• Two Negative Samples: Connect the higher

negative sample to inlet L. Connect the lower

negative sample to inlet H.

• Two Positive Samples: Connect the higher posi-

tive sample to inlet H. Connect the lower positive

sample to inlet L.

• One Positive and One Negative Sample: Con-

nect the positive sample to inlet H. Connect the

negative sample to inlet L.

Mounting

1

Connecting Sensing Ports 1
Optional HFO-001x Sensor Probe 2
Wiring

2

Setpoint Adjustment 2
Maintenance

2

(CSE-1103 Shown)
