REE-5106/5123
1
Installation Guide
Installation Guide
Relay Module, Proportional Reheat w/ Thermostat Power Supply
REE-5106/5123

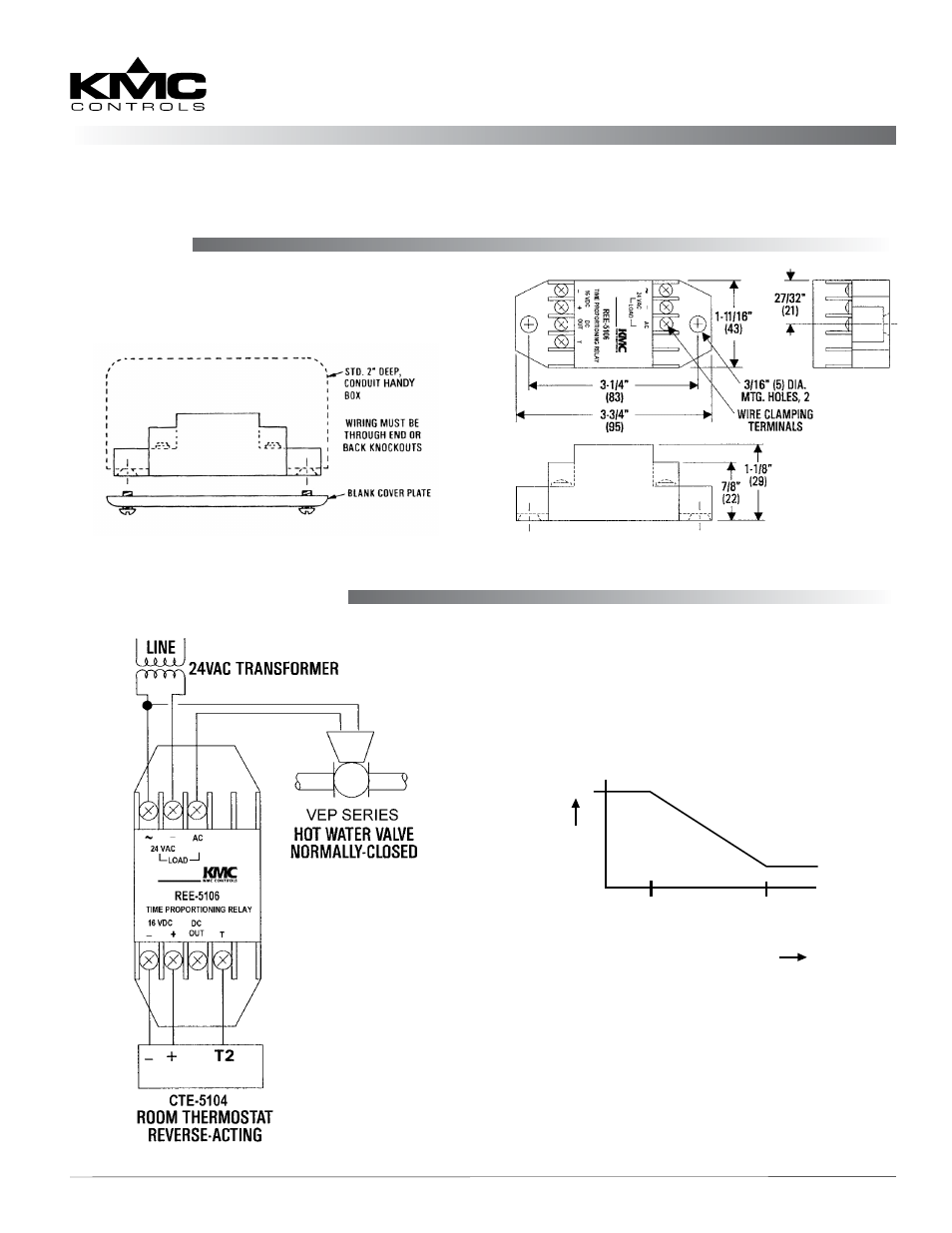

Mounting 1
Connections and Wiring 1
Troubleshooting 2
Maintenance 2
Important Notices 2
More Information 2
The
module may be mounted directly to a control
box surface or in a 2 x 4" electrical handy box. Add a
blank cover to conceal the module if desired.
Mounting
Connections and Wiring
Wire as shown for providing proportional reheat to
an electric hot water valve. Supply the relay with 24
VAC (+20%/–15%) from a Class 2 transformer. (Use
wire size of 14 to 22 AWG, stranded.)
All dimension are in inches (mm)
Valve
Closed
Valve
Open
Room Temperature
10
2 VDC
Thermostat
Signal (RA)
Water
Flow
NOTE: The REE-5123 (shown on the next page) has
been discontinued.
NOTE: For REE-5106 use with a CTE-5202
on the KMC web site.
REE-5106
