Kidco G2401 - Manual (Page 2)

U S E R G U I D E
2
A Hinge side template
B Locking side template
C-F Screw/screw socket
G Lower handle part
H Lower hinge part
I Upper handle part
J Upper hinge part
K Wood screws
L Upper hinge bracket
M Lower hinge bracket
N Stop pin
O Lower locking bracket
P Stop clip
Q Upper latch
R Upper locking bracket
S Locking cap
T Hinge cap
U Spring

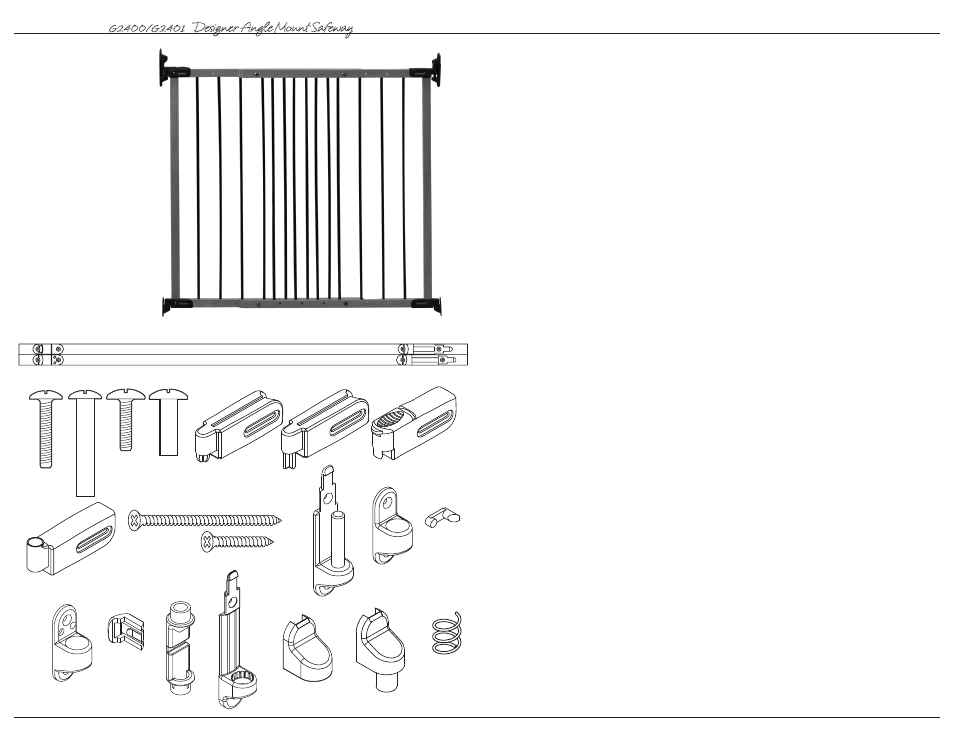

Parts list
A
B
J
S
Fx4 Dx4 Ex4 Cx4
R
L
Q
M
O P
K
N
G H I
U T
G2400/G2401
Designer Angle Mount Safeway
®
