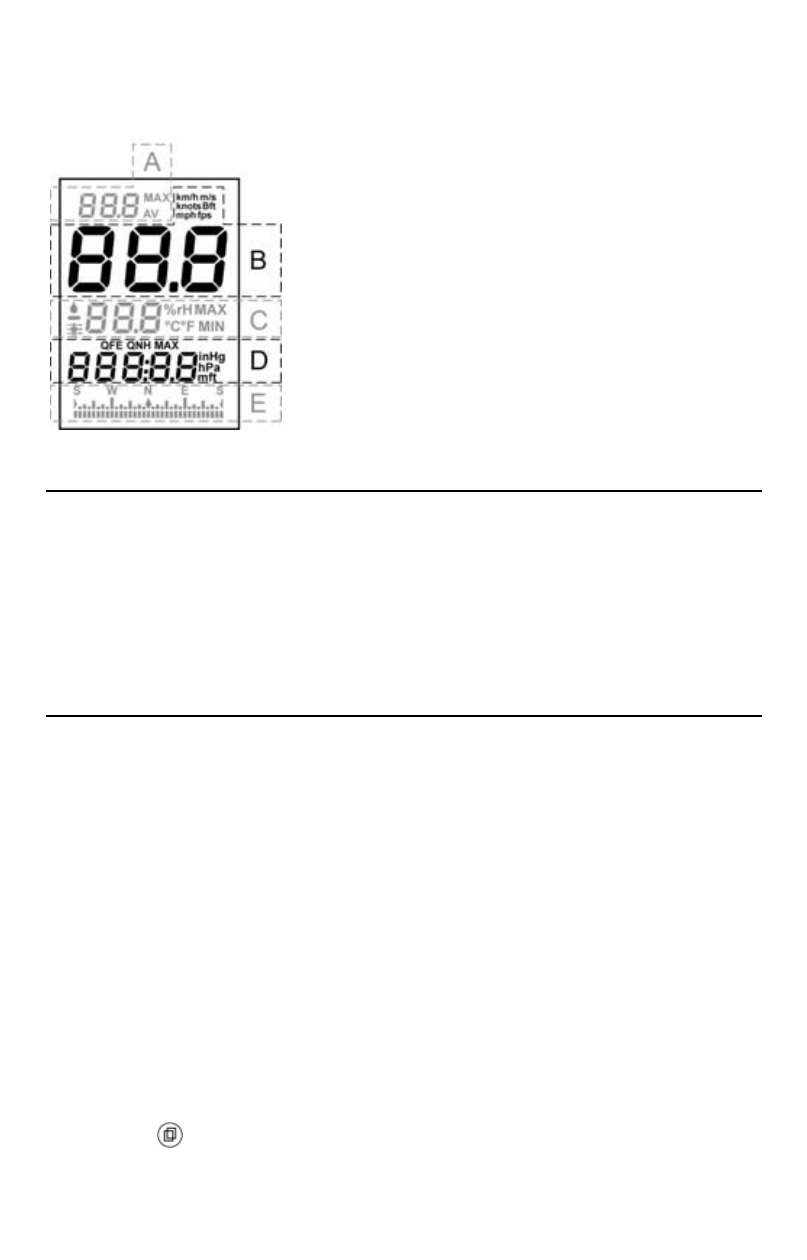

Description of the Sections of the
Display Screen
A
Upper block
B Large block
C Middle block
D Lower block
E Analogue compass block
Display principle with regard to functions (measuring modes)
Each measuring mode occupies a very particular space on the screen.
Measuring modes are always displayed following the same principles, i.e.:
- 1 standard screen containing all the basic measuring modes.
- 1 screen per special mode, when activated.
- 1 'special menu' used to enable/disable the special modes, view
memories and carry out some adjustments.
Distribution of basic modes over the standard screen
Each block (with the exception of the large one), accommodates several
measuring modes; however, only one mode may be displayed at the
same time per block. The basic measuring modes are displayed on the
standard screen as follows:
upper block: average and maximum wind speed
large block : instantaneous wind speed
middle block: all the temperature and humidity measuring modes,
including dew point
lower block: digital compass and all the functions relating to
pressure, including altitude, flight level, and height
compass block: analogue compass (1 mark located under the bargraph
indicates the heading)
The SEL ( ) button is used to select a block (the block flashes when
selected). The selection time (flashing) is 5 seconds. Each time the
