29

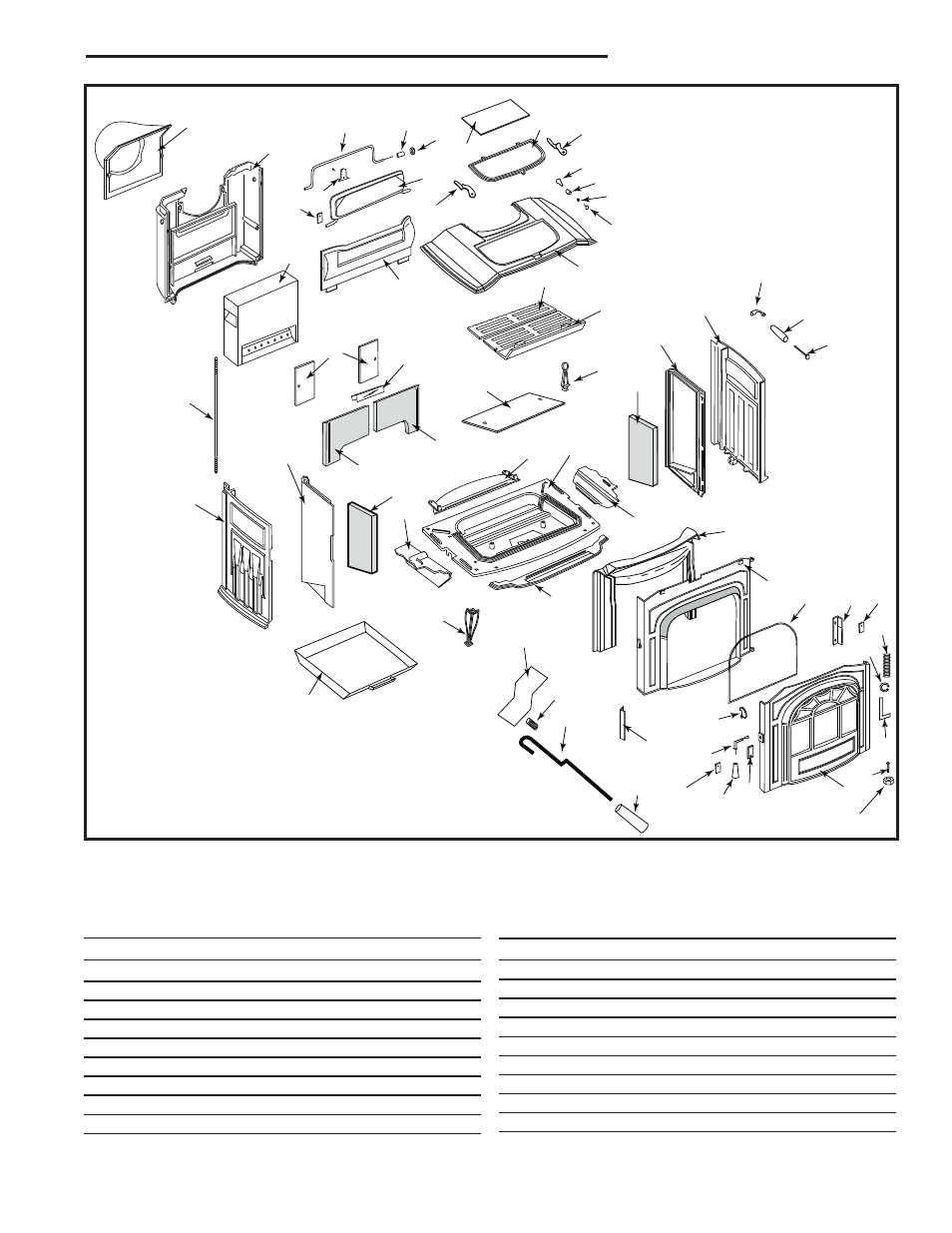

Resolute Acclaim Woodburning Stove
2000893
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
1
2
3
6
7
8
4
5
9
11
10
12
14
13
15
16
17
18
25
24
19
20
21
22
23
26
27
53
54
55
52
51
32
35
37
36
33
32
31
29
30
34
38
56
57
59
58
62
63
41
61
58
28
65
66
39
40
41
0893
Resolute Acclaim 2490
parts
8/02
83
68
67
69
64 7
7
Resolute Acclaim Woodburning Stove
Model 2490
Item Description Part Number Item Description Part Number
1. Flue Collar See Chart Pg. 30
2. Back 1301860
3. Damper Rod 1600853
4. Spacer 1201780
5. Washer - 3/8” 1202488
6. Damper Ramp 1301811
7. Damper Tab 1601488
8. Damper 1301829
9. Upper Fireback 1301805
10. Flue Cover See Chart Pg. 30
11. Left Griddle Quad 1301807
12. Griddle 1306356
13. Right Griddle Quad 1301832
14. Griddle Handle Stub 1600881
15. Griddle Knob 1600661
16. Bushing 1201900
17. Griddle Handle Screw 1201308
18. Top See Chart Pg. 30
