15
Resolute Acclaim Woodburning Stove
2000893

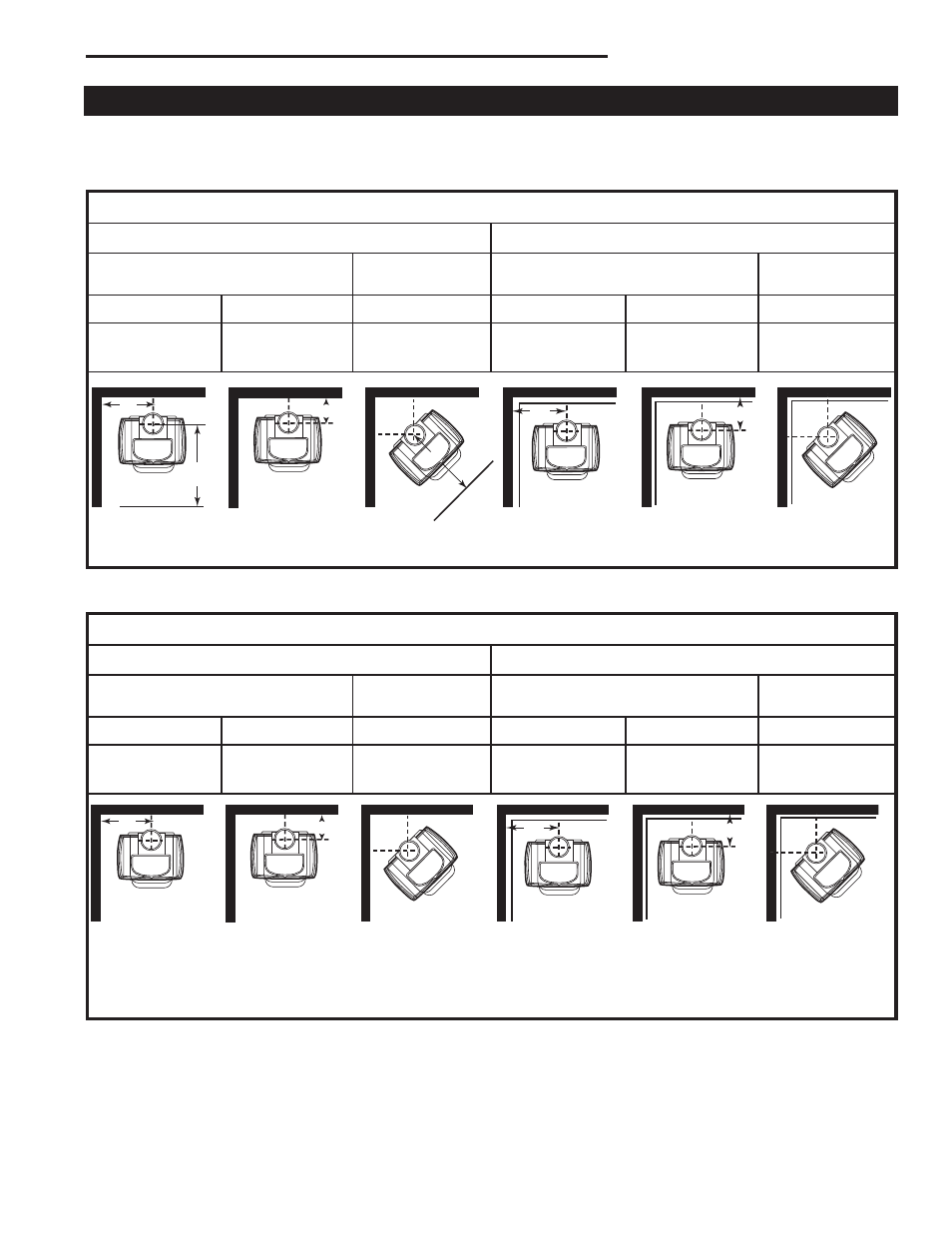

Distance from the Center of the Flue Collar to the Wall in Top-Exit Installations
The information on this page is helpful in planning stove placement for top-exiting installations, particularly those in-
stallations with chimneys that pass through the ceiling. However, this is not a clearance chart. Final stove clearances
must adhere to the guidelines stated in the Clearance Chart on Page 8.
Resolute Acclaim: WITHOUT Stove and Chimney Connector Heat Shields
Unprotected Surfaces Protected Surfaces
Corner Corner
Parallel Installations Installations** Parallel Installations Installations**
Side (A) Rear (B) Corner (C) Side (D) Rear (E) Corner (F)
27¹⁄₂” 26” 25¹⁄₂” 20¹⁄₂” 15” 18¹⁄₂”
(699 mm) (660 mm) (648 mm) (521 mm) (381 mm) (470 mm)
ST608
Resolute Acclaim
flue centerline
Diagrams
1/01
*
A
B C
*
D E F
* This distance, from the center of the flue collar to the front edge of the hearth, is the same for all installations on this page:
35” in the United States and 37” (940mm) in Canada.
Resolute Acclaim: WITH Stove and Chimney Connector Heat Shields
Unprotected Surfaces Protected Surfaces
Corner Corner
Parallel Installations Installations** Parallel Installations Installations**
Side (A) Rear (B) Corner (C) Side (D) Rear (E) Corner (F)
27¹⁄₂” 17” 25¹⁄₂” 20¹⁄₂” 11” 18¹⁄₂”
(699 mm) (432 mm) (648 mm) (521 mm) (279 mm) (470 mm)
ST608
ST608a
Resolute Acclaim
flue centerline
Diagrams
1/01
A
B C D E F
**To locate center of flue collar for corner installation, add 10¹⁄₂” (270mm) to the clearance distance from stove corner to wall.
Mark off the resulting distance from the corner along both walls. Next, measure the same distance from these two points out
from the walls. These last two measurements will meet at a point representing the center of the flue collar. Refer to the dia-
grams above.
