17
Resolute Acclaim Woodburning Stove
2000893
Stove Controls
Two Controls Operate the Stove
The primary air control lever, located beneath the
ashlip, regulates how much heat the stove produces by
controlling the amount of air received by the fire. The
more air supplied, the hotter the fire. (Fig. 27)
With a travel range of about 6” (159 mm), the air con-
trol is closed when the lever is fully left. Maximum heat
is produced when the lever is fully right. It may also be
set anywhere between a “start-up” position and the high
and low extremes to achieve a desired heat output. A
directional arrow cast into the Acclaim’s ash lip serves
Operation
as a reminder of the correct “open” and “closed” posi-
tions.
The damper handle is located on the right side of the
stove and controls air flow within the stove. (Fig. 27)
The damper is open when the handle is toward the rear
of the stove, and the combustion gases exit directly out
the flue collar. When the handle is pulled forward and
locked, the damper is closed, secondary combustion
occurs, and the stove operates most efficiently.
The damper must be fully open or fully closed. There
are no intermediate positions for the damper handle.
You will need the following tools to assemble the Ac-
claim:
• 9/16” open end wrench • safety glasses & gloves
• flat head screwdriver
• power drill w/ 1/8” (3mm) bit
• stub handle phillips screwdriver
Unpack the Stove
1. Remove the shipping straps and plastic wrap.
2. Inspect the stove and contents for shipping damage
or missing parts. Immediately notify your dealer of
any damage. Do not install this stove if any damage
is evident or any parts are missing.
Hardware Bag contents:
• Stove Legs, 4
• 3/8-16 x 1¹⁄₄” hex head Leg Bolts with washers, 4
• Owner's Registration Card
• Touch-up Paint (Porcelain enamel stoves)
Install Stove Legs
Remove and discard the four large slot-head screws
from the stove bottom. Install the stove legs using the
hex head bolts from the parts bag. (Fig. 26a) Use 3/8”
washers with all four legs. Tighten the bolts firmly.
CAUTION: Overtightening can strip tapped threads.
ST466
Seville
Attach legs
Leg Bolt and
Washer
Leg Leveller
ST466

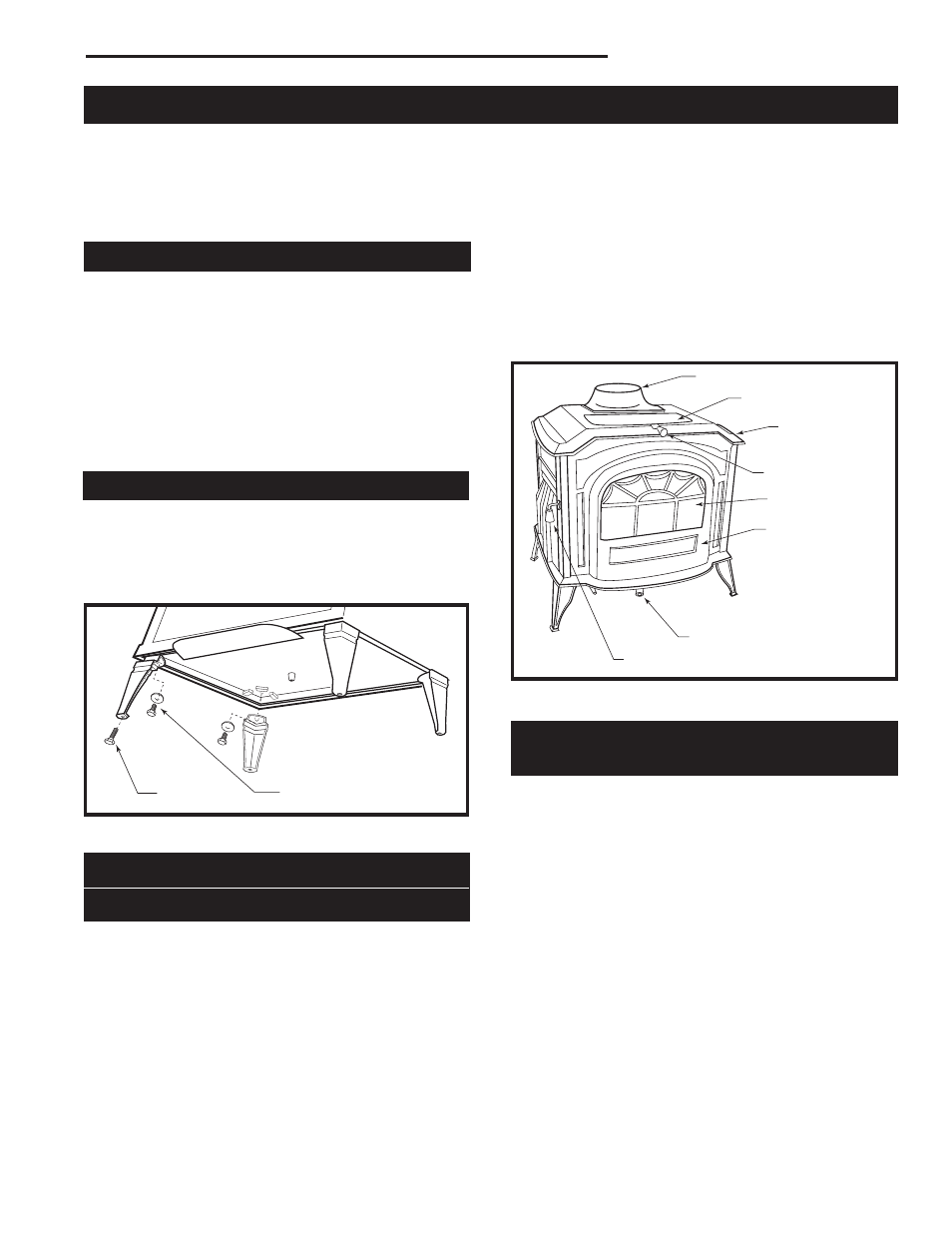

Fig. 26a Attach stove legs and leg levellers.
Two Ways to Add Logs
and a Choice of Fire Views
Convenient top-loading of wood through the Acclaim’s
stovetop griddle supplements traditonal fireplace-style
loading through the front door.
The griddle simply lifts to open.
The front door employs a rotating cam and a door latch
tab to secure it. The handle points down when the door
is closed.
To open the front door, pull on the handle to release the
cam. To close it, push the door until the latch engages.
Double-check the latch by pushing lightly on the handle.
When the latch is properly secured, the door will remain
closed.
For clear fire viewing, the front door features a large,
self-cleaning glass panel. The front door may be
opened (or even removed) and the optional spark
screen clipped in place for open-fire viewing as well.
ST611
Res Acclaim
controls
10/1/02 djt
Flue Collar
Top Load Door/Griddle
Damper Handle
(not shown)
Griddle Handle
Glass Panel
Front Door
Primary Air Control
Front Door Handle ST611
Fig. 27 The Resolute Acclaim controls are conveniently
located and easy to use.
