Adjusting the Throttle Opening
1. Lower the throttle and center the throttle
trim.
2. Adjust the length of the throttle linkage
until the throttle is open 1mm.
3. Move the throttle stick up to confirm the
throttle opens. If the throttle does not
open, reverse the throttle channel in your
transmitter.
4. Move the throttle stick and throttle trim
down to confirm the throttle closes.
5. If you reversed the throttle channel in your
transmitter and you are using a 2.4GHz
radio system, you must re-bind your radio
system to set the correct failsafe position.

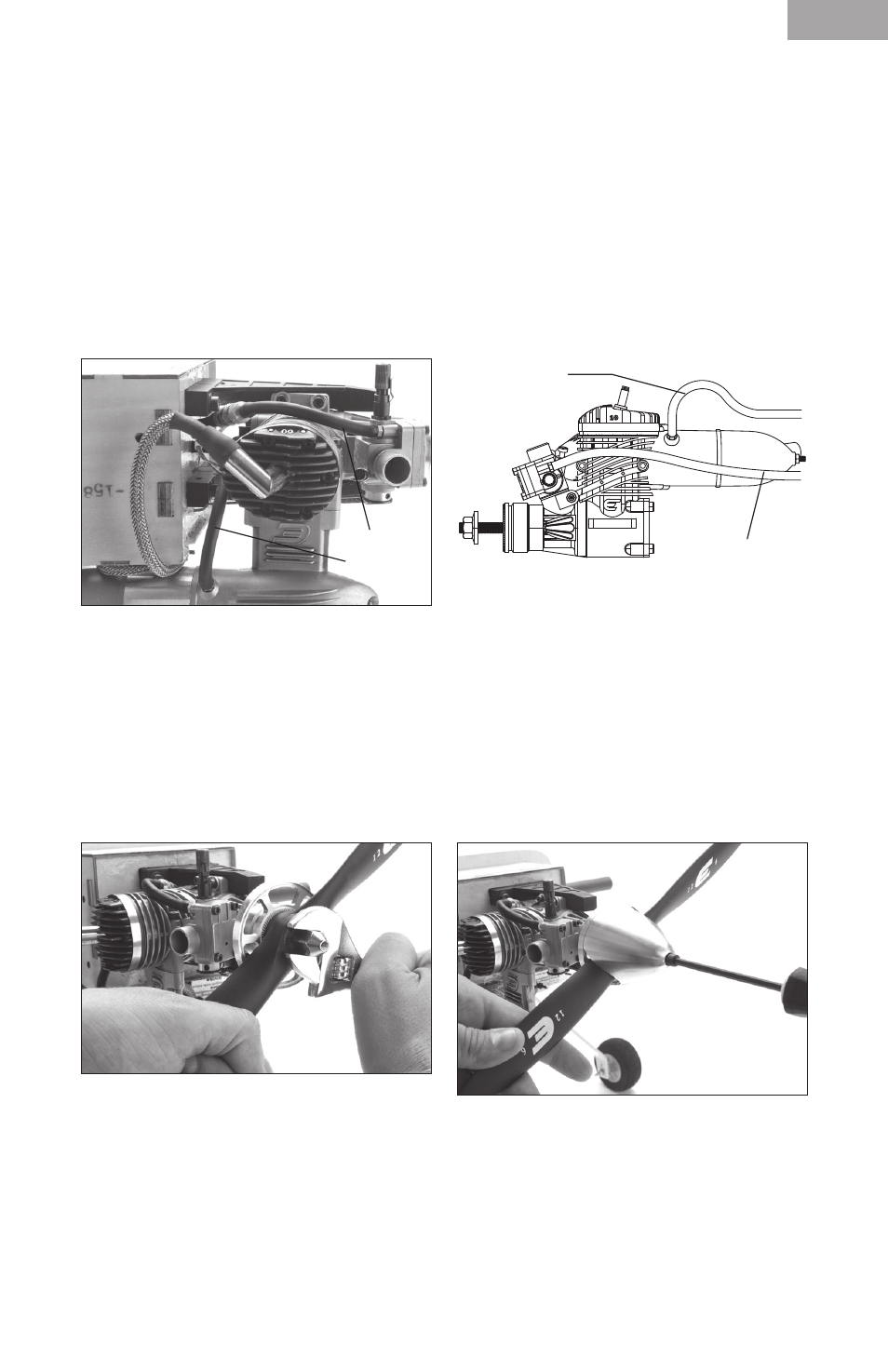

Attaching the Fuel Lines
Fuel Line
Vent Line
1. Connect medium diameter Viton ® fuel line
to the carburetor and the fuel tank supply
line.
2. Connect medium diameter Viton fuel line
to the muffler pressure nipple and the fuel
tank vent line.
Vent Line
Fuel Line
RECOMMENDED PROPELLERS
10 x 6–13 x 8 (12x6 has tested to be the best
performer with this engine although the
performance is very good throughout the
recommended range)
1. Remove the prop nut and prop washer from
the crankshaft.
2. Install the spinner backplate, followed by
the propeller, prop washer and prop nut.
3. Cover the propeller with a cloth and use an
adjustable wrench to tighten the prop nut.
4. Install the spinner cone. Make sure the
spinner cone is not touching the propeller.
Trim the propeller opening if necessary.
5. Tighten the spinner screw(s) to secure the
spinner cone.
Attaching the Propeller and Spinner
