Page — 22 HI n 3550 Manual

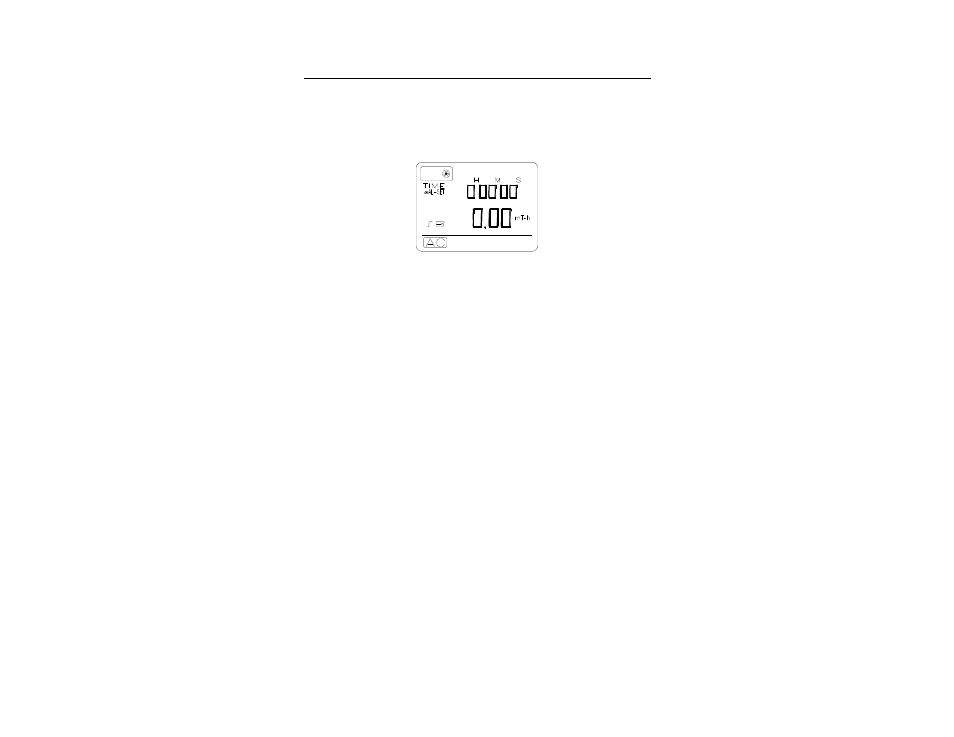

Figure 14
Integrating Mode Display
with Only Instantaneous Alarm Set and ON
) B AL-SET and the alarm indicators are visible.
b. In the instantaneous measurement mode only the
alarm indicator is visible.
When alarm values are programmed for both the
integrating and instantaneous measurement modes but
the alarm is OFF, or when the alarm is ON but alarm
values for both the integrating and instantaneous
measurement values are set to 0.0 mT:
None of the I B AL-SET, ) B AL-SET or alarm
indicators are visible.
In the stand-by mode, only the STBY indicator is visible.
Alarm
The instantaneous alarm signal is generated in both the
instantaneous and integrating measurement modes. The
integrating alarm signal is produced only in the integrating
measurement mode.
The instantaneous alarm signal occurs 8 times per second
for a duration of three seconds. The integrating alarm
signal occurs once per second for a duration of 60
seconds.
