HI n 3550 Manual Page — 21

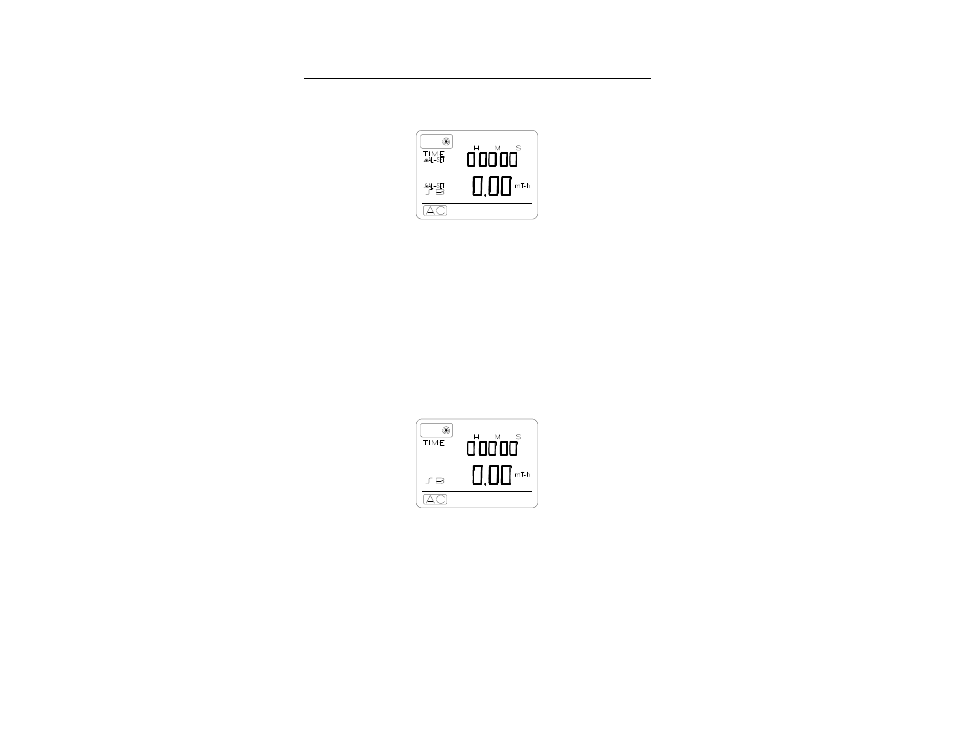

Figure 12
Integrating Mode Display
with Both Alarms Set and ON
Figure 13
Integrating Mode Display
with Only Integrating Alarm Set and ON
alarm indicator is visible.
When an alarm value is programmed only for the
integrating measurement mode and the alarm is ON:
a. In the integrating measurement mode, only the alarm
indicator is visible.
b. In the instantaneous measurement mode, no alarm
indications are visible.
When an alarm value is programmed only for the
instantaneous measurement mode and the alarm is ON:
a. In the integrating measurement mode, both the
Archived 4/2/10
