Introduction

MODEL 4630 REFRAD REFERENCE RADIATOR

2

© EMC TEST SYSTEMS, L.P. – MARCH 2002

REV F – PN 399214


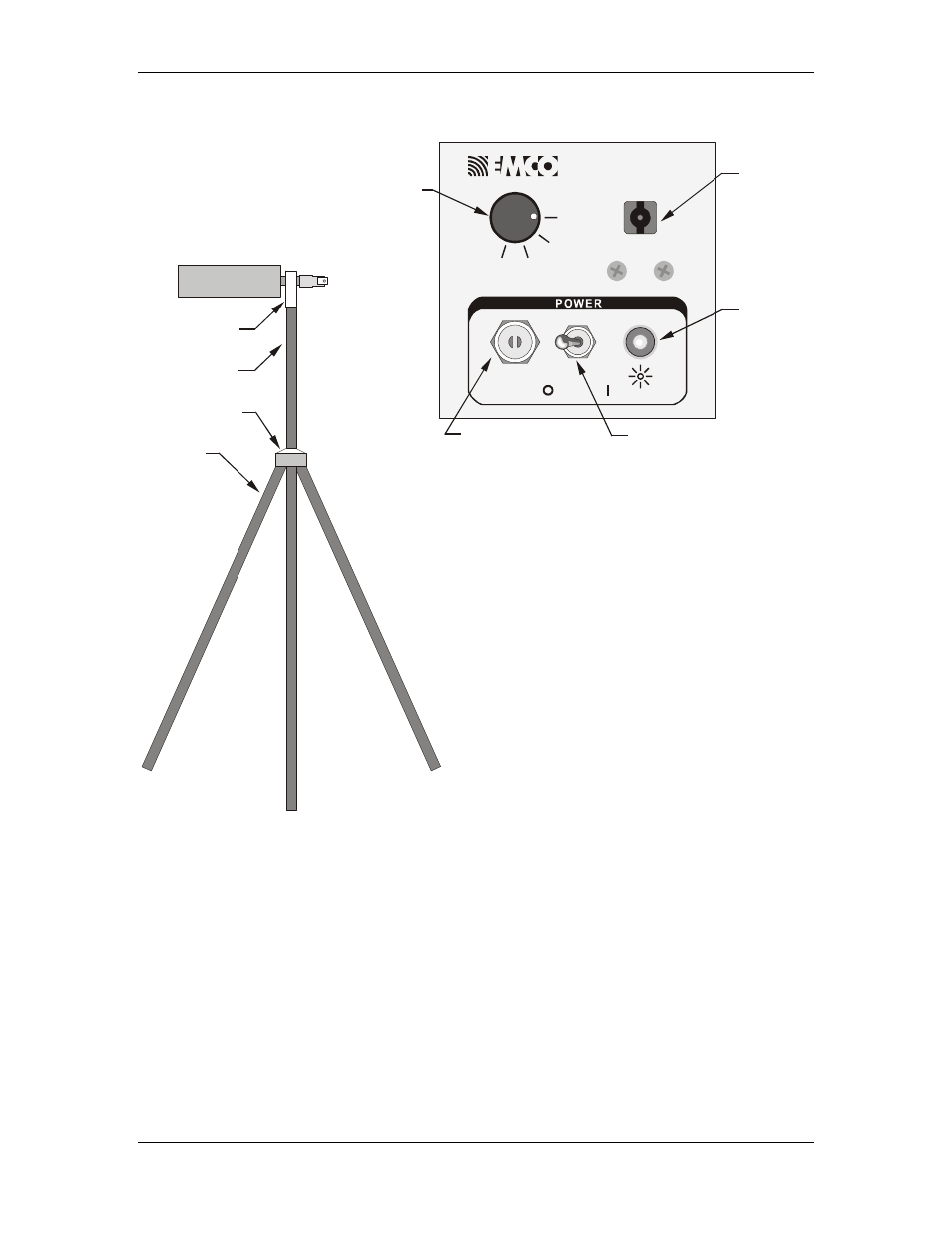

FIGURE 1. REFRAD Comb Generator
Front Panel.





Insert the battery charger output plug into the
comb generator’s input socket.
(see the following Battery Charger topic for
more information)


FIGURE 2. Tripod Mounting of REFRAD Comb Generator


BATTERY CHARGER
There is one red LED and one green LED on the body of the
separate battery charger. The “Power On” LED illuminates when
the chargers is plugged into the 20V DC power supply. Power is
supplied to the supply via the IEC 302-type power inlet. The
supplied safety-certified power cord should always be used to
maintain safe operation.

A solid red LED indicates fast charge mode. When the red LED
flashes, the charger is operating in a pre-charge mode. As the

Rotary switch
for manual selection
of a comb spectrum
or

mode

REMOTE

Battery charger input

Fiber optic input
for remote control

LED
power on
indicator

ON / OFF switch

F.O. INPUT

CHARGE

OFF

/

REMOTE

0.01 MHz

1.0 MHz

5.0 MHz

ON

MODEL 4630

REFRAD COMB GENERATOR

REFRAD
Comb Generator

Clamp block

Support rod

Support base

Tripod

Archived 3/18/10
