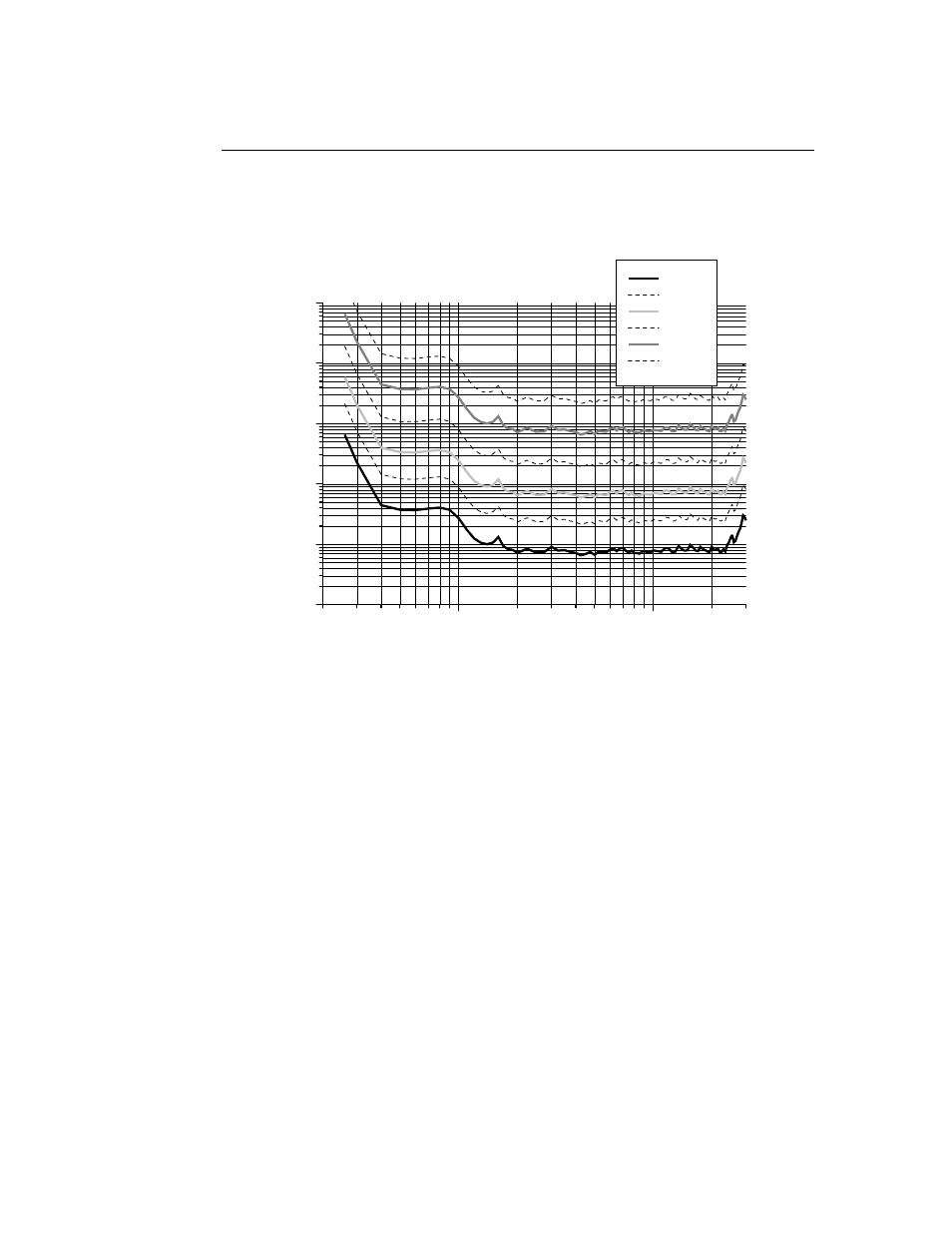

7.4 Model 3142C Typical 26-3000 MHz 3M Forward Power
The following illustrates the typical 26-3000 MHz forward power required for 1, 3,
and 10 V/m at 3 meters from the antenna tip.
100 1000
0.01
0.1
1
10
100
1000
3000 20
1 V/m
80% AM
3 V/m
80% AM
10 V/m
80% AM
Wa
tts
Frequency MHz
24 | Typical Data with Optional End Plates
