4.0 Mounting Instructions
4.1 Model 3142C Components
The Model 3142C BiConiLog™ Antenna consists of the following:
• (1) Antenna
• (2) Bow-tie elements
• (2) 10-32 thread knobs to attach bow-tie elements
• (2) Protective end caps for bow-tie elements
• (8) Screws to attach protective end caps to bow-tie elements
The optional end plate package consists of:
• (2) T bow-tie endplates
• (8) Thumbscrew knobs to attach endplates to bow-tie elements
4.2 Mount the Bow-tie Elements
1. Without the bow-tie elements attached, mount the Model 3142C on a
tripod or tower adapter.
2. Slide the narrow end of one of the bow-tie elements into the receptacle
hole on the boom, and then align the bow-tie with the receptacle on the
boom.

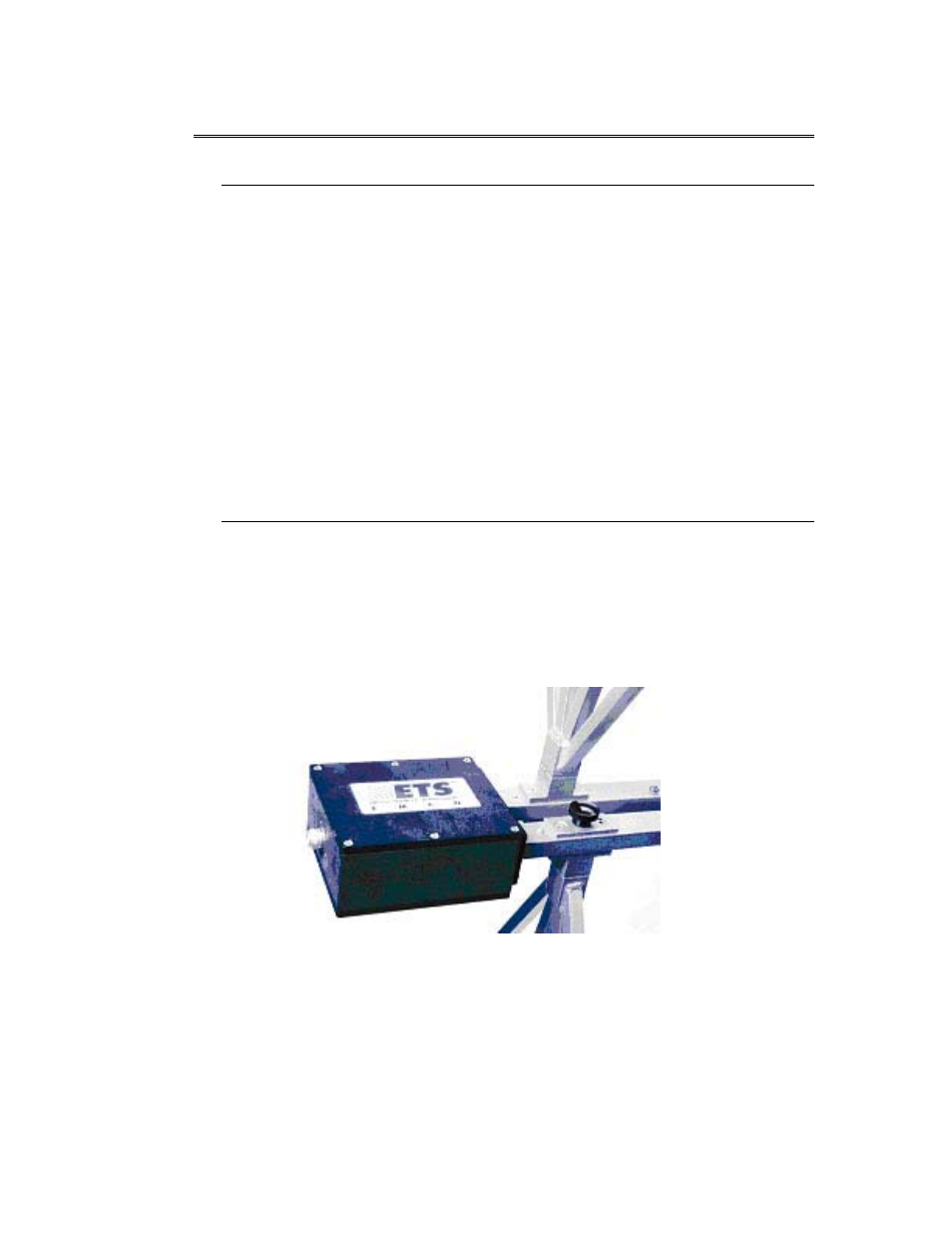

Figure 1: Bow-tie element mounted to boom
