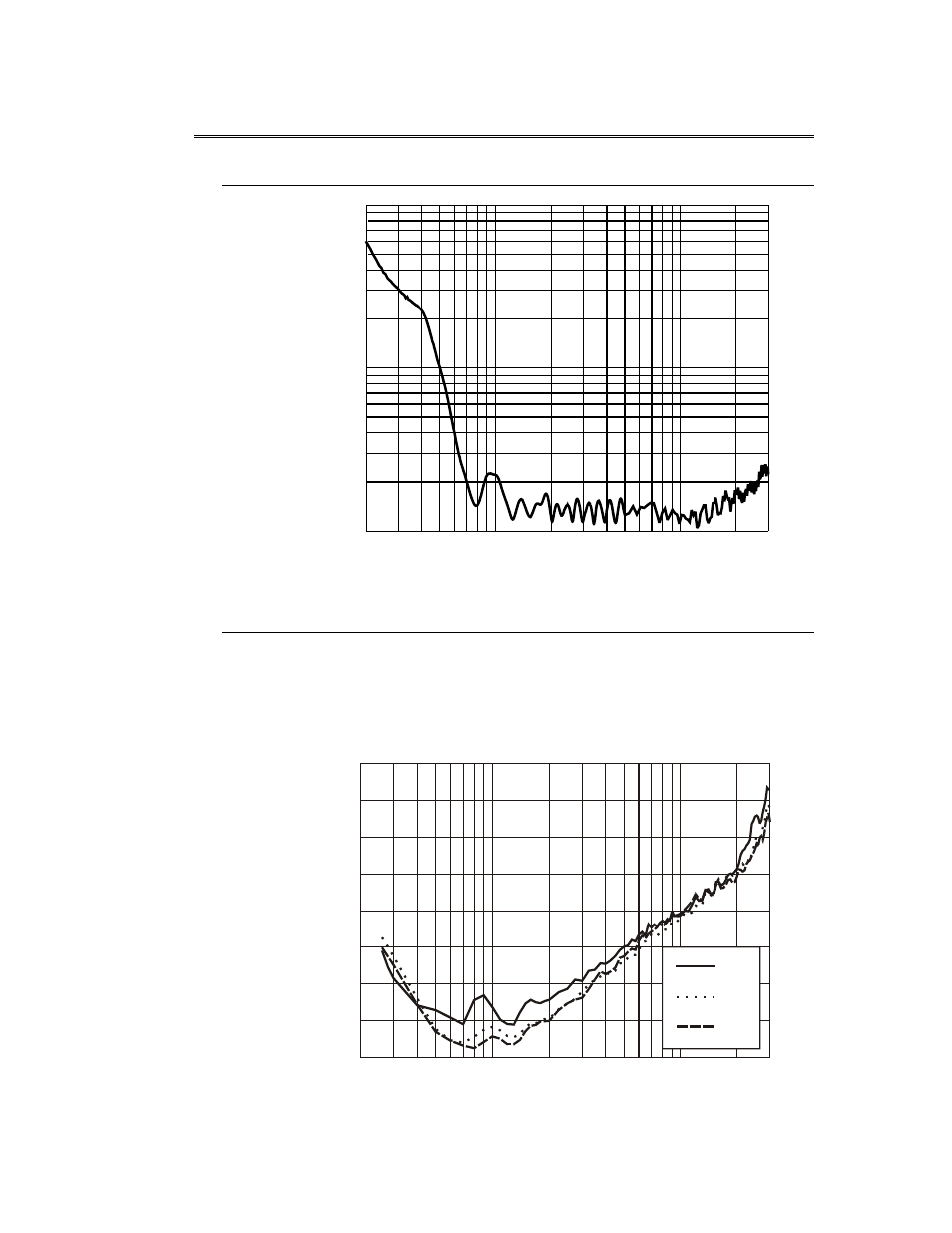

6.0 Typical Data Without Optional End Plates
6.1 Model 3142C Typical 26-3000 MHz VSWR
20 100 1000 3000
1
10
100
Frequency (MHZ)
V
S
W
R
6.2 Model 3142C Typical 26-3000 MHz Antenna Factor
Distance for the ANSI 3 and 10 meter calibrations is measured from the antenna
midpoint, and for SAE 1 meter calibrations the distance is measured from the
antenna tip. Midpoint is defined as half the distance between the small elements
and the bow-ties, which is about 45 cm from the small end tip.
20 100 1000 3000
5
10
15
20
25
30
35
40
45
10m
3m
1m
dB
1/
m
Frequency (MHZ)
Typical Data Without Optional End Plates | 19
