Introduction | 7
Introduction

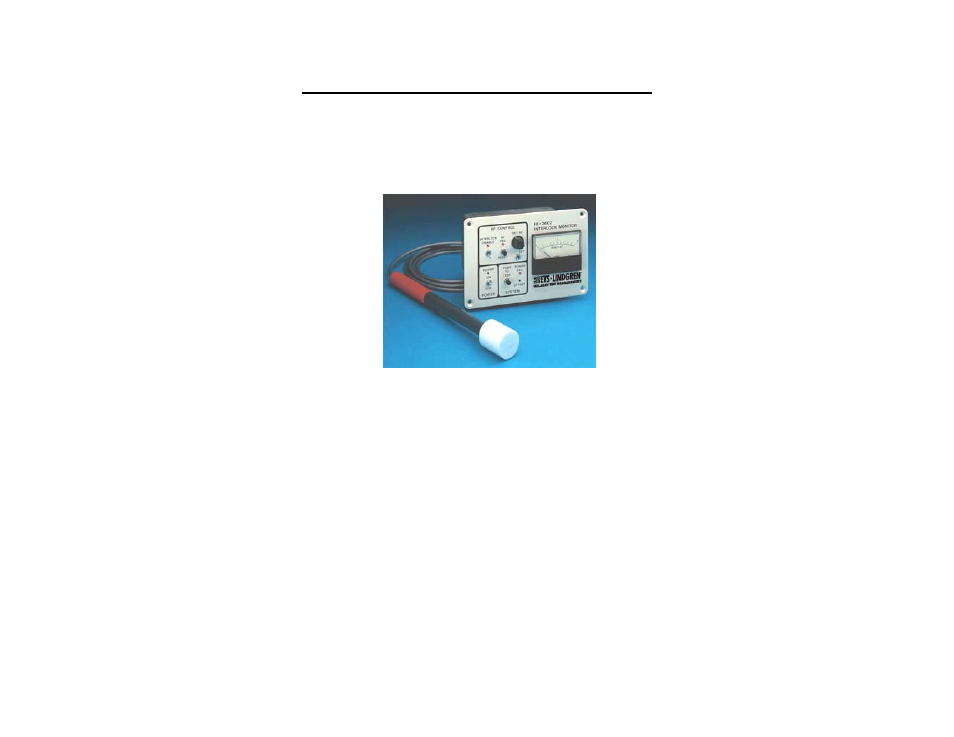

The HI-2602 Interlock Monitor provides continuous surveillance of microwave
fields for protection of personnel and equipment. The instrument accepts an input
from a single, remotely mounted sensing probe using ETS-Lindgren’s patented
microwave field sensor. Useable in any critical area, the HI-2602 interlocks with
any microwave source or alarm.
The HI-2602 may be set to trigger at any RF level up to 2.0 mW/cm². When the
RF level sensed by the probe exceeds a preset RF level, the RF Fail indicator
will light and the output interlock will latch
The instrument is calibrated for measurement in the 2450 MHz ISM band only
and is intended for area hazard monitoring. It is not intended for RF leakage
compliance measurements.
The HI-2602 Interlock Monitor is designed to operate from standard 50/60 Hz
120 or 240 VAC power. The AC input power, is customer specified and set at the
factory.
