16 | Operation
System Operation

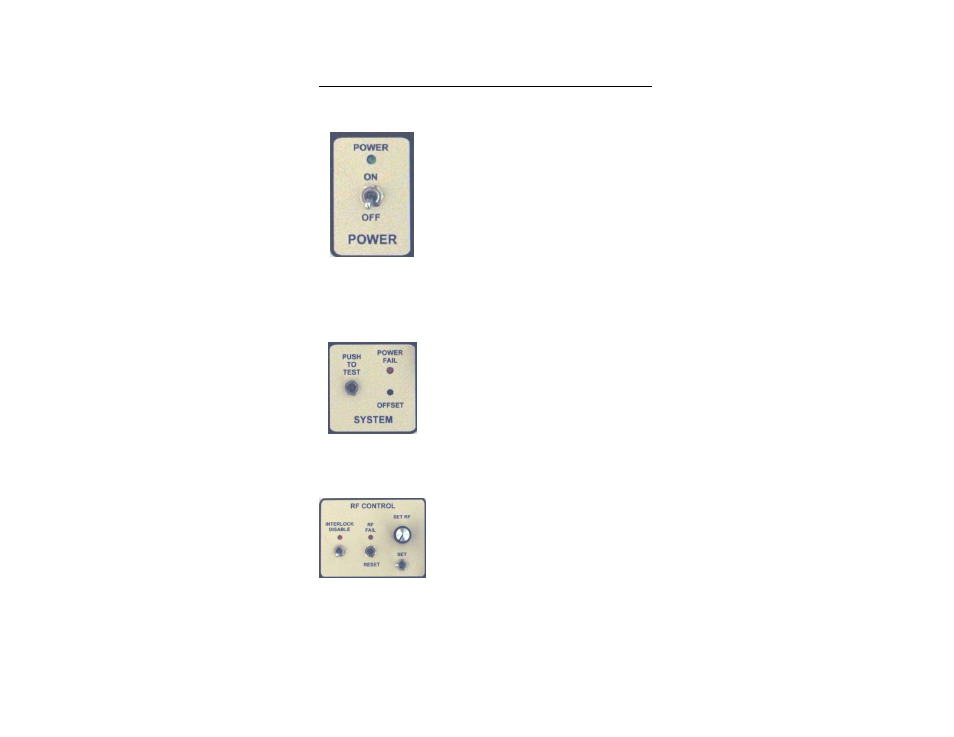

Turn the main power switch on; the green LED
illuminates. If not, check the power cord
connections at both ends. Also, check the
2 amp fuse located at the power connector. If
the POWER FAIL indicator lights and stays lit,
discontinue use immediately and contact
ETS-Lindgren. If the INTERLOCK DISABLE or
the RF FAIL indicators are lit, use the
corresponding switch to turn them off.
Allow the system to warm up and stabilize for 5 minutes. With all sources of RF
at the probes turned off, view the analog meter and, if necessary, adjust the
offset potentiometer for a zero reading.
Check the operation of the HI-2602 in active
use by operating the PUSH TO TEST switch.
The RF FAIL indicator will light and the analog
meter will read approximately 2.0 mW/cm².
Before proceeding push the RESET button.
Adjust the RF Fail level by pressing and holding
the SET switch and then adjusting the SET RF
potentiometer until the meter needle indicates
the desired level.
After the RF FAIL point has been adjusted the
reading may be checked by pressing the SET
switch and observing the meter reading.
