www.ets-lindgren.com Pneumatic Polarization Upgrade Kit 39
5. Connect coiled tubing from air cylinder to compression connectors on
right-angle bracket.

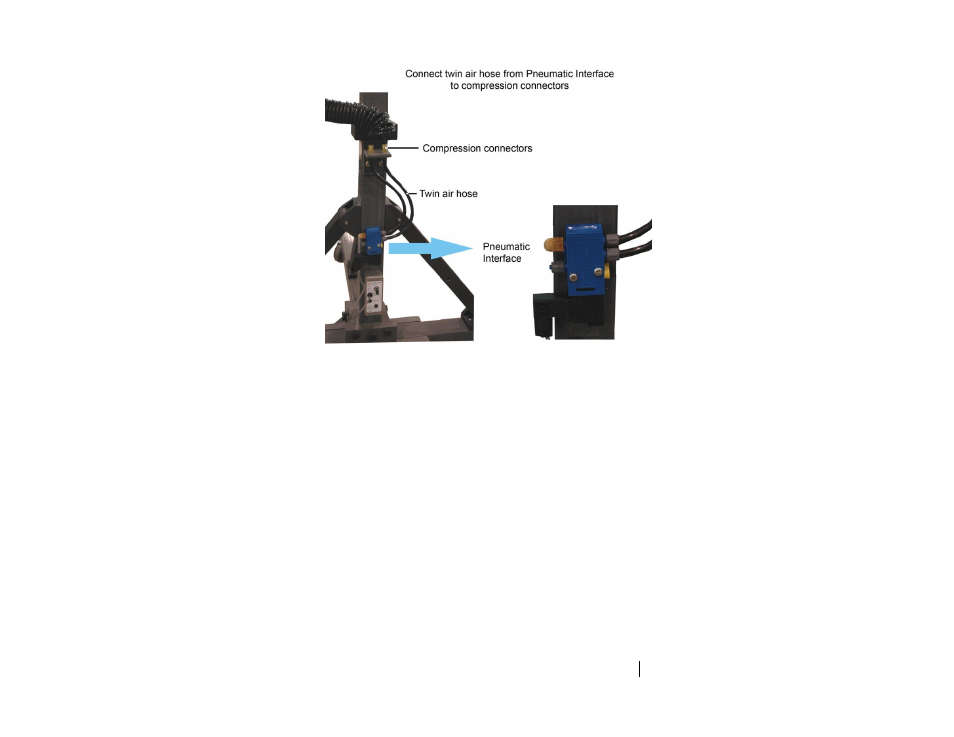

6. Connect twin air hose:
 Plug ends of the twin air hose into the connectors on the side of
the Pneumatic Interface.
 Plug the other ends of the twin air hose into the compression
connectors on the right-angle bracket.
 Tighten both sides of the compression connectors.
