36 Pneumatic Polarization Upgrade Kit www.ets-lindgren.com
Assembly Steps

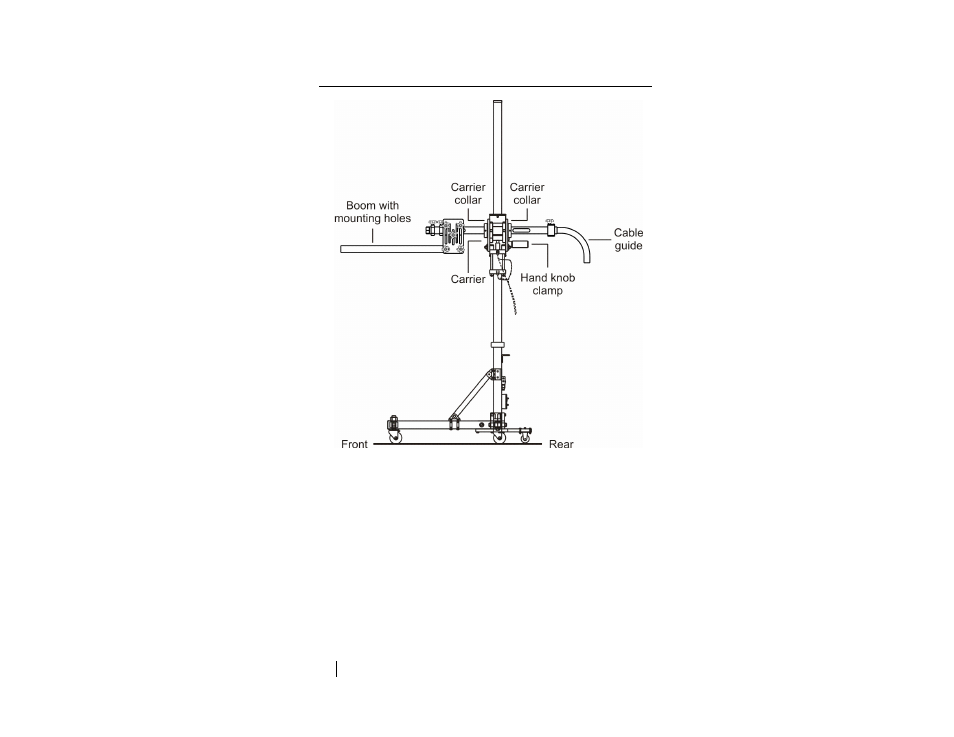

1. Remove the boom from the carrier on the 7-TR:
 Remove the 1/4-20 set screws located in the carrier collars that
secure the boom.
 If the boom has a cable guide, remove the cable guide from the
end of the boom.
 Completely remove the boom from the carrier by withdrawing it
towards the front of the 7-TR.
