www.ets-lindgren.com Mounting a Model 3106 Series Antenna 29
5.0 Mounting a Model 3106 Series Antenna
Before connecting any components or
operating the Model 7-TR, follow the safety
information in the ETS-Lindgren
Product Information Bulletin included with
your shipment.
You will need assistance from two team members
to mount a Model 3106 Series antenna to the 7-TR.
You must install the 108507 boom onto the 7-TR before performing
these steps. For clarity, the following illustrations do not show the
7-TR.
ETS-Lindgren may substitute a similar part with the same functionality
for another part (for example, a wingnut for a hex nut).
The following steps to mount a Model 3106B Double-Ridged Waveguide Horn
Antenna onto a 108507 boom apply to all Model 3106 Series antennas.

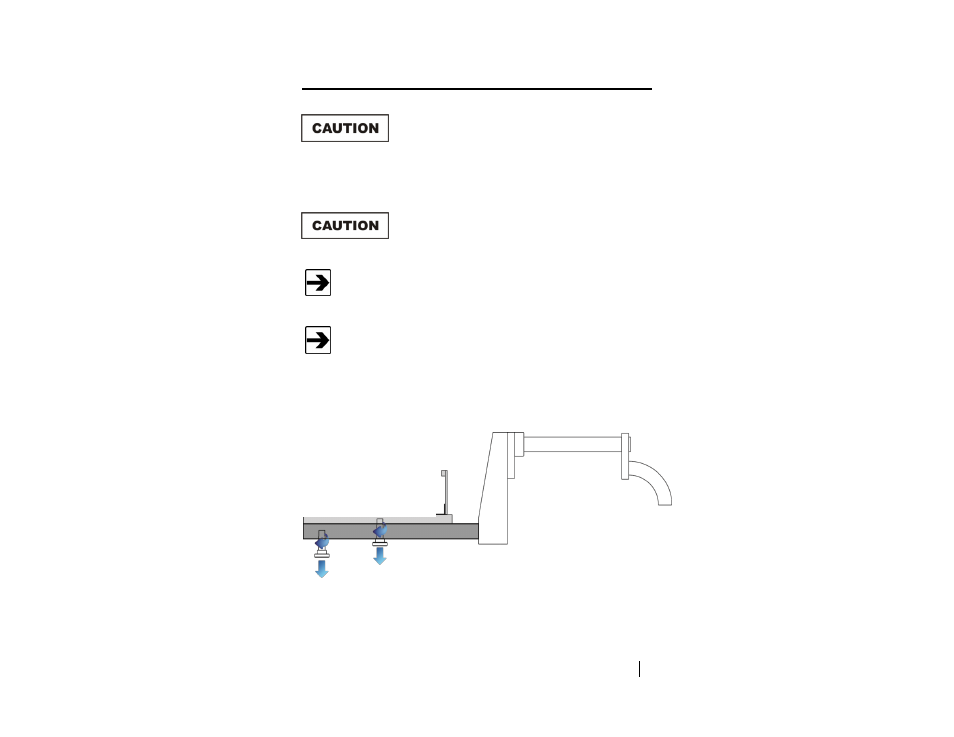

1. Remove the two
104136 boom knobs
from the underside of
the 108507 boom.
You will re-use the
knobs in step 7.
