Mounting a Model 3106 Series Antenna to a 7-TR

Step 7

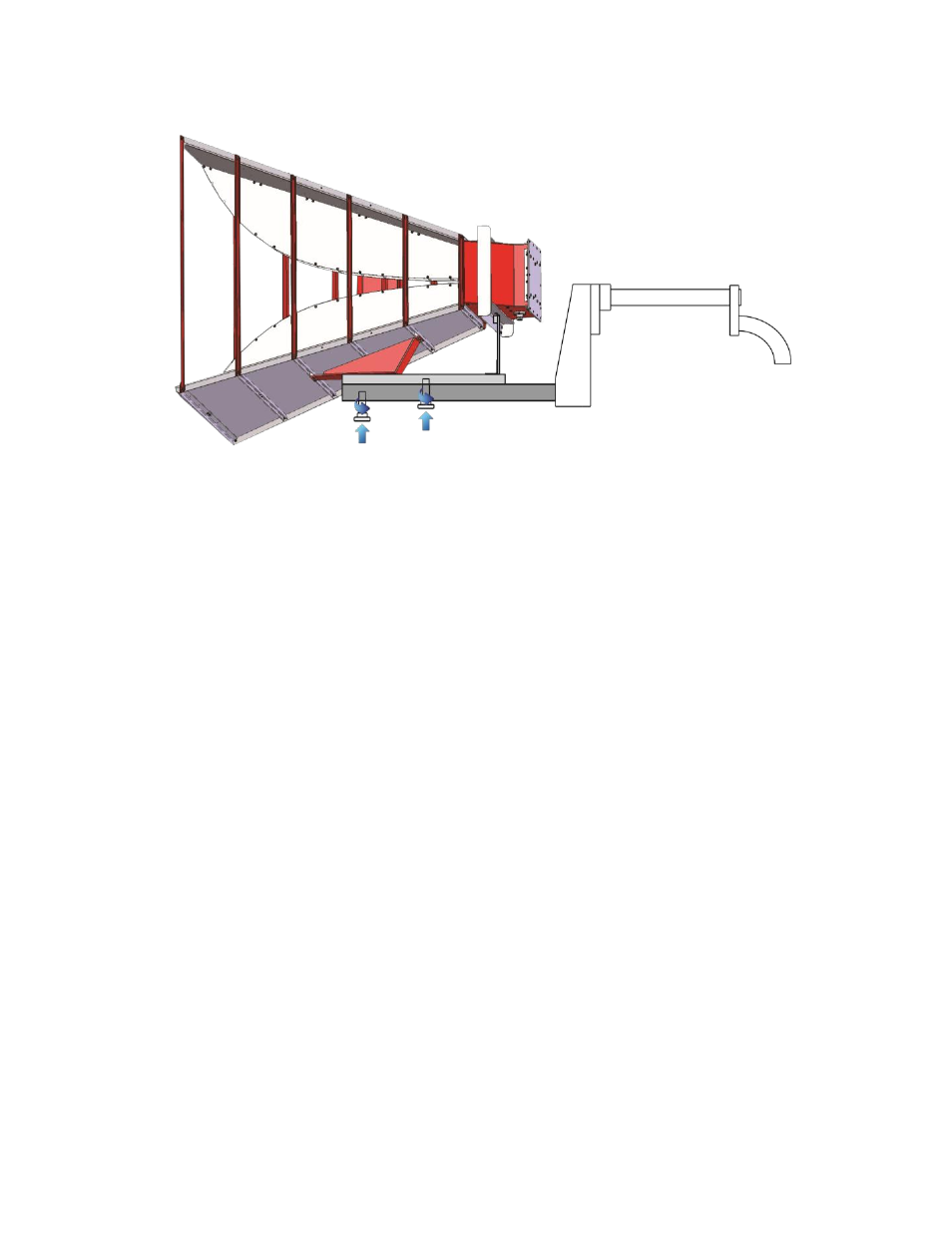

Attach the mounted assembly to the boom: Use the two 104136 knobs removed in
Step 1 to attach the antenna and mount adapter assembly to the boom. Tighten to
secure.
