Mounting Instructions

2x2 Boom Mounting Options

2x2 boom

refers to a typical 2-inch by 2-inch boom.

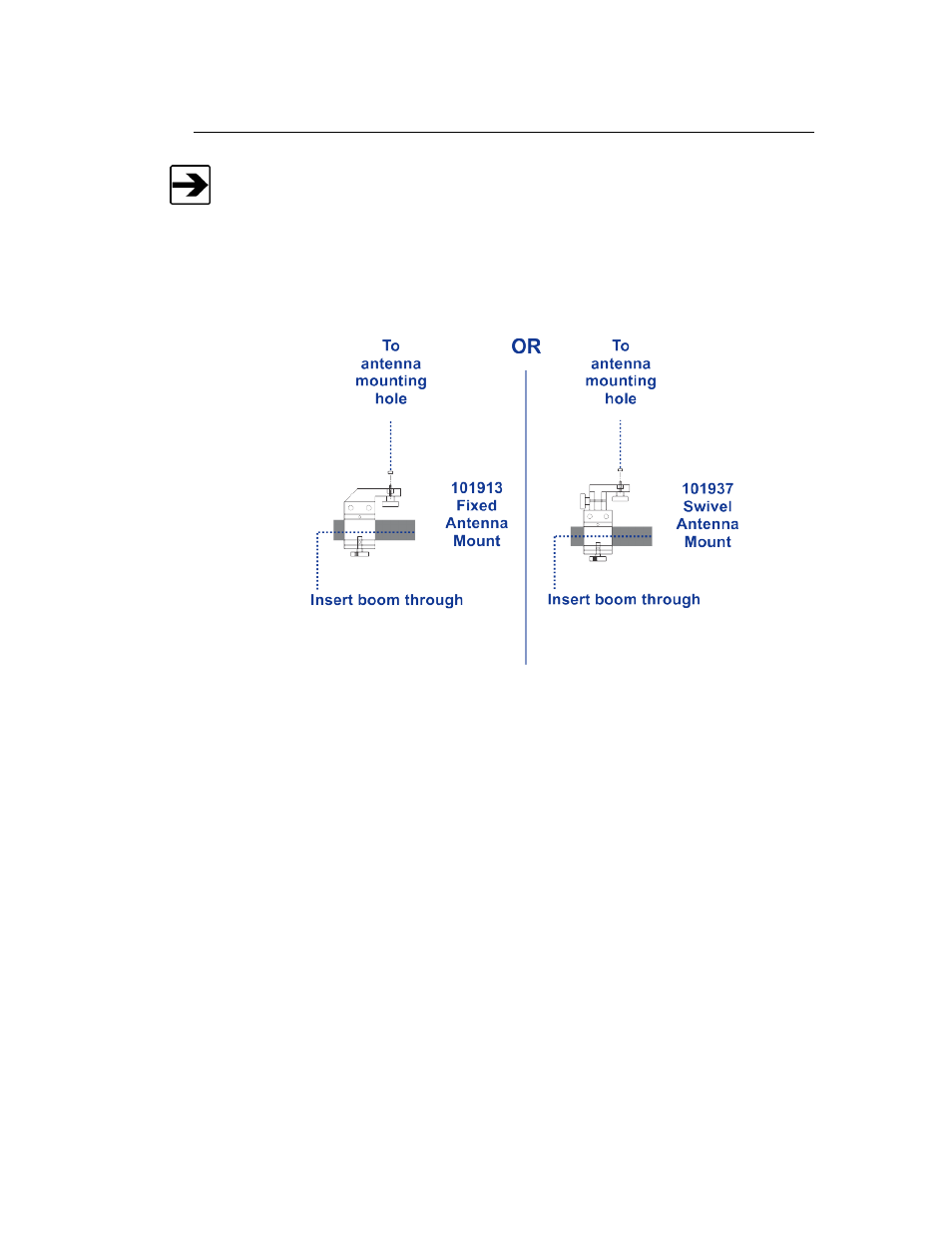

Following are options for mounting a Double-Ridged Waveguide Horn Antenna
onto a 2x2 boom. Contact the ETS-Lindgren Sales Department for information on
ordering optional mounting hardware.
