ETS-Lindgren 3119 Double-Ridged Waveguide Horn - Manual (Page 23)

Mounting Instructions
| 23
7-TR and Mast Mounting Options
Due to the size of the Model 3112, do not mount it onto a 7-TR.
For a list of 7-TR boom options, see page 10. For 7-TR mounting instructions,
see the 7-TR manual.
For instructions to mount a Model 3106B to a 7-TR, see page 29.
The stinger on the Model 3117 and Model 3116C enables you to mount the
antenna directly to an ETS-Lindgren 7-TR without additional hardware.

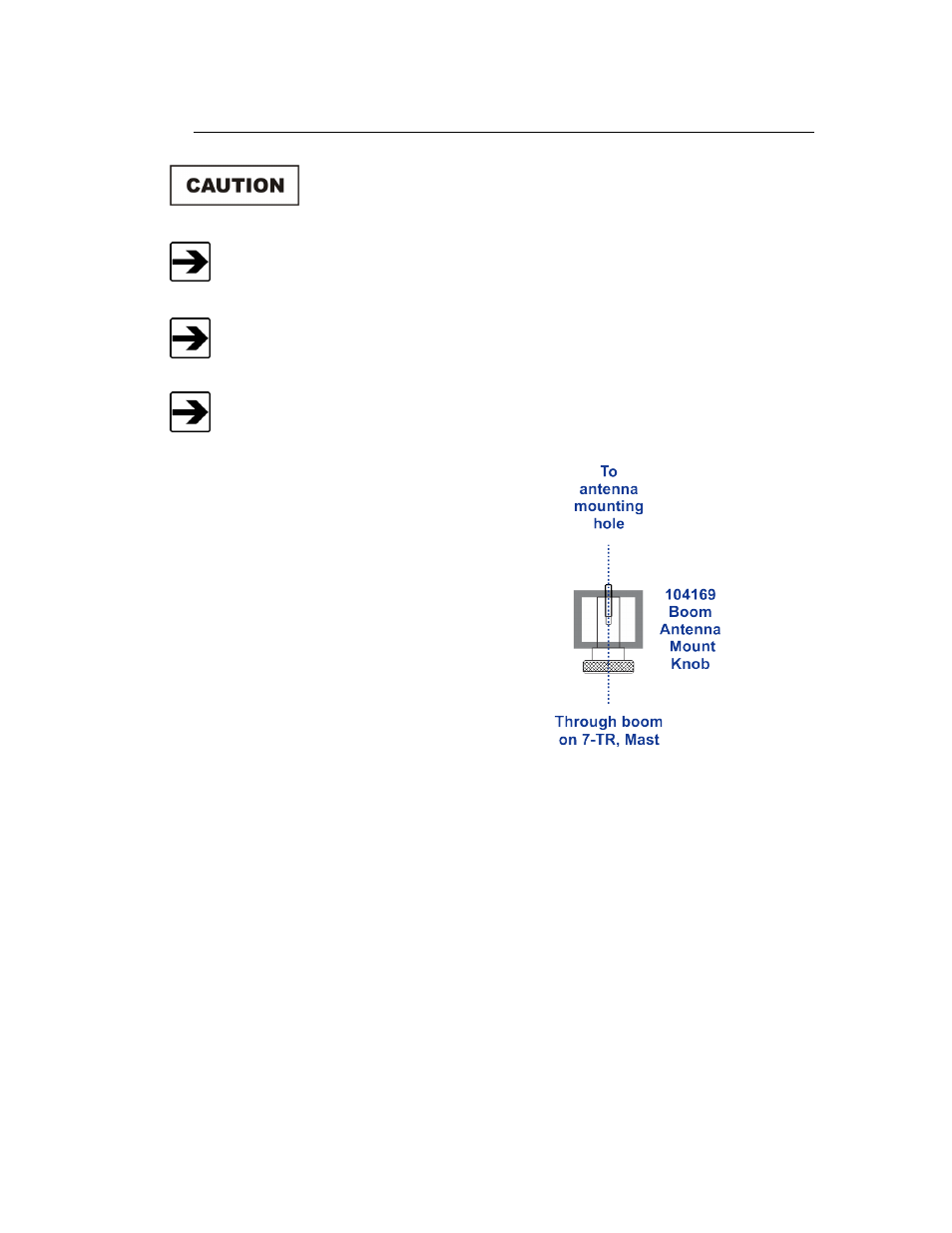

This illustration provides an option
for mounting a Double-Ridged
Waveguide Horn Antenna (except
Model 3106B and Model 3112) onto
an ETS-Lindgren 7-TR Tripod or
mast. Contact the ETS-Lindgren
Sales Department for information on
ordering optional mounting
hardware.
