Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 6

Foil Scrim

Tape

Self Locking

Washers

Impaling Pins

Section 37 - Back Panel Insulation Installation

5. Cut the specified rigid insulation to size. The insulation should fit tightly into the framed opening. The edges of the insulation may be cut slightly angled to

assist with insertion into the opening.

6. Insert the insulation onto the impaling pins into the opening so that the insulation is flush with the back of the mullion.
7. Clean the surfaces of the mullion where the foil scrim tape will be applied with an approved solvent or cleaner.
8. Apply foil scrim tape to the four edges of the insulation and mullions to form an air tight seal. If the insulation is in more than one piece, tape the edges

together. See Figures 33, 34 and 35.

9. Insert the self locking washers onto the impaling pins and force them down to the surface of the insulation to hold the insulation securely. Fold the exposed

end of the impaling down, flush with the insulation, and apply foil scrim tape to cover the pin and washer completely. See Figure 36.

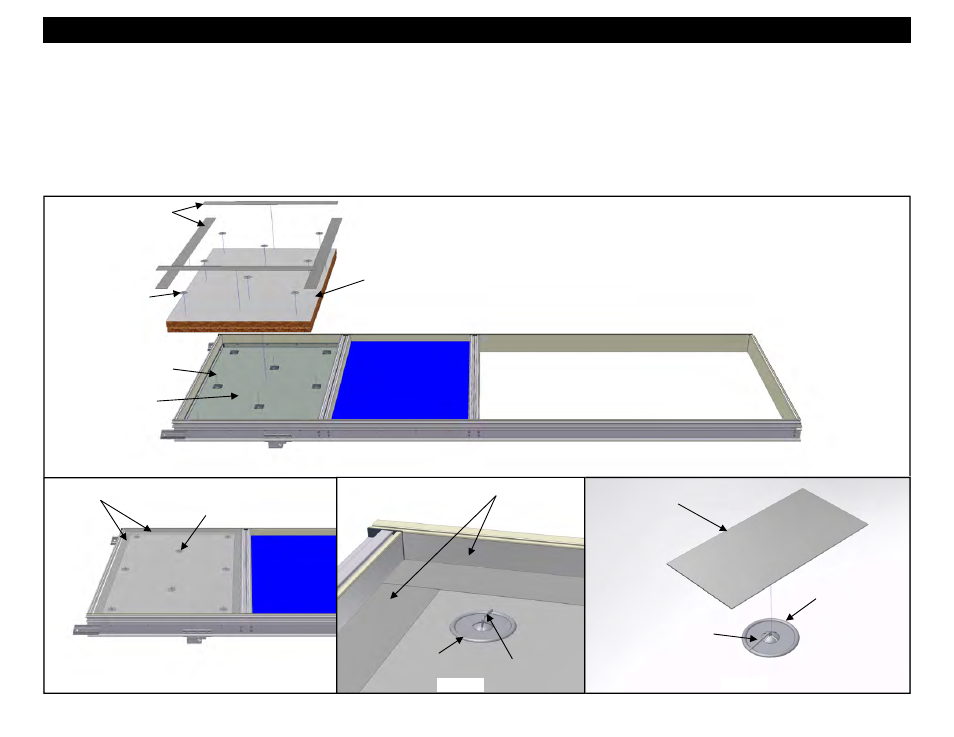

Rigid insulation with scrim
reinforced foil facing on
interior surface.

Foil Scrim

Tape

Impaling Pins

Self Locking

Washers

Foil Scrim

Tape

Impaling Pins

Figure 34

Figure 33

Self Locking

Washers

Impaling Pins

Foil Scrim

Tape

Figure 36

Figure 35

Galvanized Steel

Back Panel
