Section 35 - Shadow Box Insulation Installation

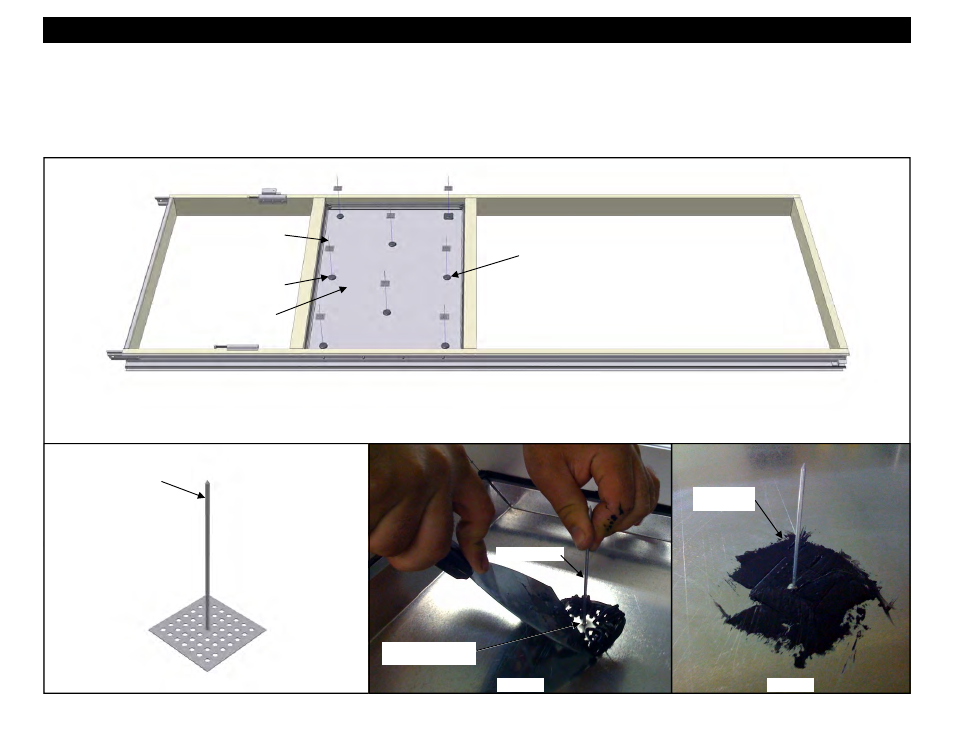

1. Clean the panel and impaling pin surfaces that will contact sealant (or adhesive) with an approved solvent or cleaner.
2. Apply adhesive or sealant to the surface of the panel in a pattern per the manufacture’s recommendations. See Figure 17.
3. Apply impaling pins into the adhesive or sealant forcing the material through the holes in the base of the impaling pin. See Figure 19.
4. Tool the adhesive or sealant over the impaling pin base, and smooth it onto the panel. See Figure 20.

Figure 17

Figure 18

Figure 20

Apply sealant or adhesive in a
pattern as recommended by the
impaling pin manufacturer.

Adhesive

Impaling Pin

Impaling Pins

Apply pins into the

sealant or adhesive

Tool sealant

or adhesive

Impaling Pin

Figure 19

Shadow

Box Panel
