EFCO 2009

Page 13

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 6

Section 36 - Back Panel Installation

6. Using an approved solvent or cleaner, clean the surfaces to receive sealant of all oils and other contaminants.
7. The back panel has a raised lip that runs around the four sides of the panel. Apply sealant between this lip and the side of the mullion as shown below, filling

the void thoroughly. See Figure 28.

8. Tool the sealant into the joint smoothly, around all four sides continuously. See Figures 27 and 28.
9. Seal the corners of the back panel thoroughly with sealant. See Figure 27.

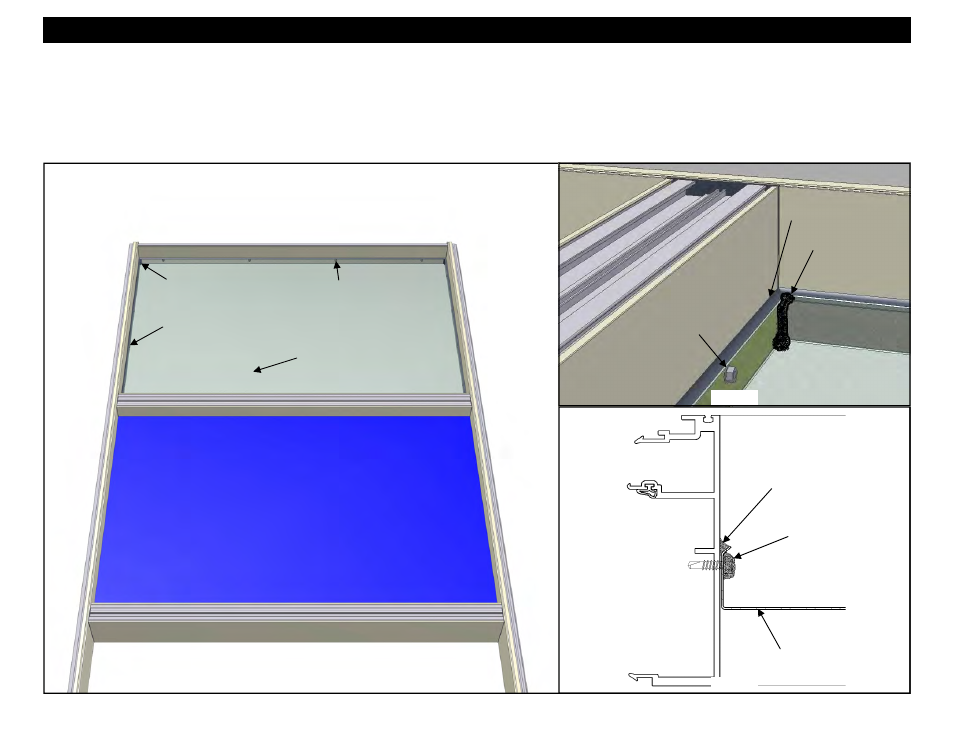

Figure 26

Seal the four
corners of the
back panel.

Galvanized Steel

Back Panel

Cap seal all
fastener heads.

Seal continuously
with silicone sealant.

Seal continuously
with silicone sealant.

Cap seal all

fastener heads.

Galvanized Steel

Back Panel

Cap seal all
fastener heads.

Seal continuously on (4)
sides with silicone sealant.

Figure 27

Figure 28

Seal the four corners
of the back panel.
