EFCO CORPORATION 6/2012 PART NO. Y310

Page 7 of 13

Series 5600 Curtain Wall Concealed Vent Installation Instructions

Section III: Installation / Frame Assembly

Installation / Frame Assembly




B.)

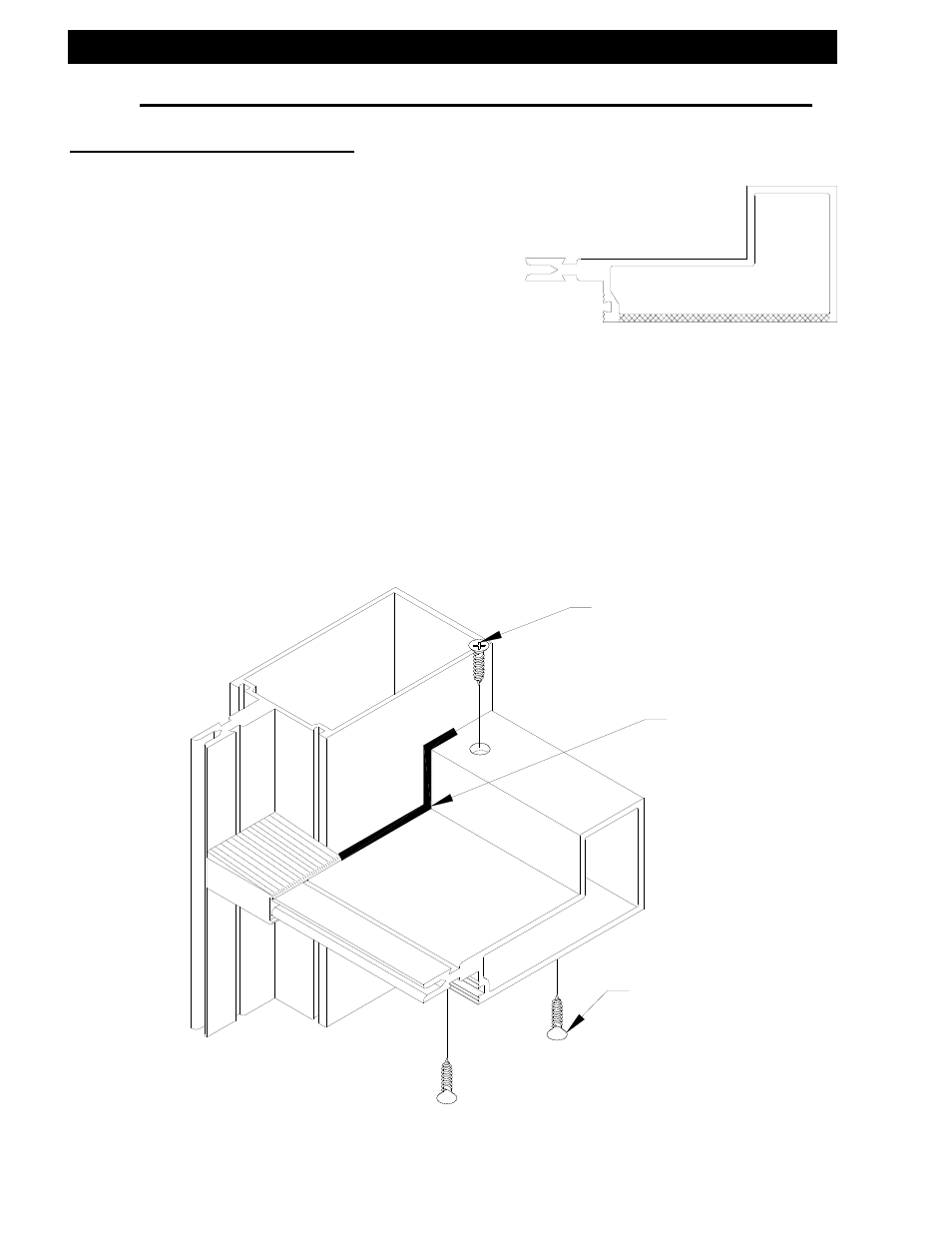

Notch bottom of horizontal for drop-in assembly where required. Reference S-5600
standard installation instructions.















Seal across the top of

the shear block and

at the joint plug

location with sealant.

After the horizontal is

installed, tool sealant

at top of horizontal.

#8 X ¾” Tek.

Notched horizontal
